Selector Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Apply petroleum jelly.

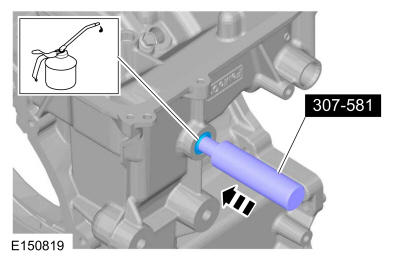

    Using the special tool, install the selector shaft seal.Use Special Service Tool: 307-581 Manual lever seal installer.

    GFD261559Courtesy of FORD MOTOR COMPANY
  2. Install the TR sensor. REFER to: Transmission Range (TR) Sensor .
