Main Control Cover: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
Remove the following items:
1. Refer to: Air Cleaner .
2. Refer to: Air Cleaner Outlet Pipe LH .
3. Refer to: Air Cleaner Outlet Pipe RH .
4. Refer to: Charge Air Cooler (CAC) Intake Pipe .

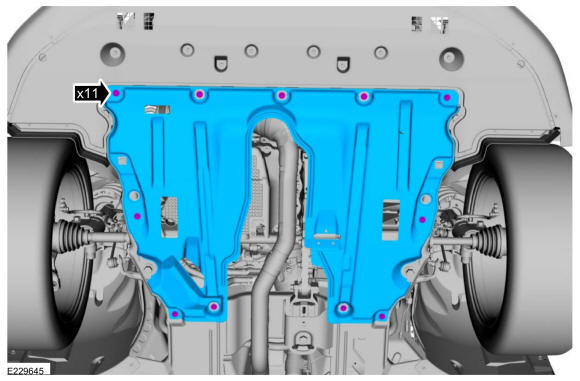

Remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the drain plug and drain the transmission. Install the drain plug.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the transmission electrical connector, remove the wiring retainers and position aside the vehicle wiring harness.

Courtesy of FORD MOTOR COMPANY
Remove the nut from the transmission fluid cooler tube bracket.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid cooler tube secondary latch.

Courtesy of FORD MOTOR COMPANY
Using the special tool, disconnect the transmission fluid cooler tube.Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

Courtesy of FORD MOTOR COMPANY

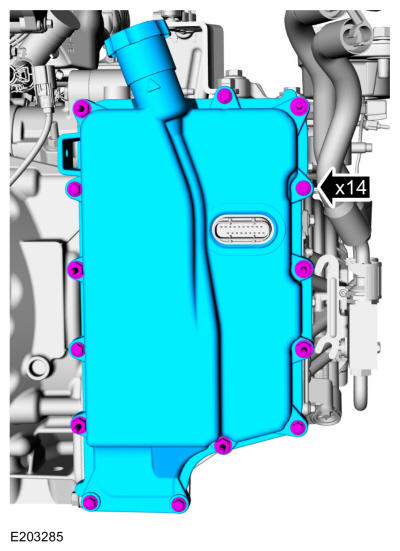

NOTE: Note the location of the studbolts for assembly.

Remove the bolts and remove the main control cover.

Courtesy of FORD MOTOR COMPANY
