Main Control Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Inspect the transmission main control cover seal for damage and install new if necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the studbolts in the correct locations as noted during disassembly.

Install the front cover and loosley install the bolts.

Courtesy of FORD MOTOR COMPANY

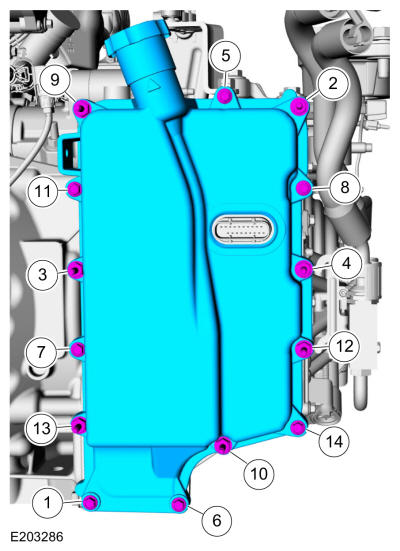

Tighten the main control cover bolts in the sequence shown.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid cooler tube.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tube secondary latches.

Courtesy of FORD MOTOR COMPANY
Install the transmission cooler tube bracket nut.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the transmission electrical connector and the wiring retainers.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Charge Air Cooler (CAC) Intake Pipe .
2. Refer to: Air Cleaner Outlet Pipe RH .
3. Refer to: Air Cleaner Outlet Pipe LH .
4. Refer to: Air Cleaner .
Remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
Fill the transmission with transmission fluid. REFER to: Transmission Fluid Drain and Refill .
