Halfshaft Seal RH - FWD: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install a new halfshaft seal on the special tool.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-582A Cover Axle Seal Installer.
    GFD261591Courtesy of FORD MOTOR COMPANY

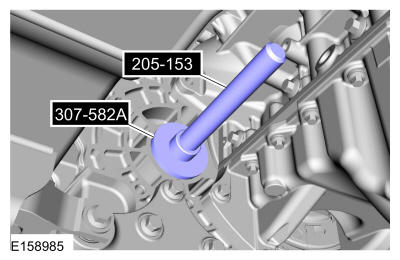

  2. Using the special tool, install the RH halfshaft seal.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-582A Cover Axle Seal Installer.
    GFD261592Courtesy of FORD MOTOR COMPANY
  3. Install the front RH halfshaft. REFER to: Front Halfshaft RH .
  4. Install the underbody shield.
    GFD261555Courtesy of FORD MOTOR COMPANY
  5. Check the transmission fluid level. REFER to: Transmission Fluid Drain and Refill .
