Halfshaft Seal LH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
  2. Remove the underbody shield.
    GFD261555Courtesy of FORD MOTOR COMPANY
  3. Remove the front LH halfshaft. REFER to: Front Halfshaft LH .

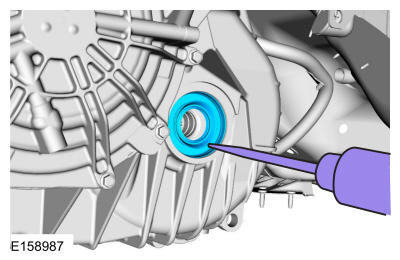

  4. Using a punch, poke a small hole in the halfshaft seal.Use the General Equipment: Punch
    GFD261585Courtesy of FORD MOTOR COMPANY

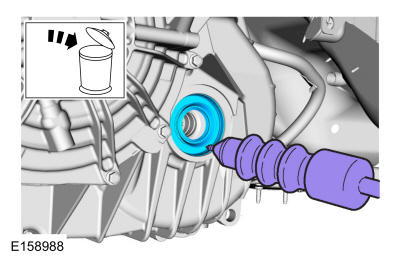

  5. Using a puller, remove the halfshaft seal.Use the General Equipment: Puller
GFD261586Courtesy of FORD MOTOR COMPANY
