Transfer Shaft: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the park pawl wheel.
    GFD261899Courtesy of FORD MOTOR COMPANY

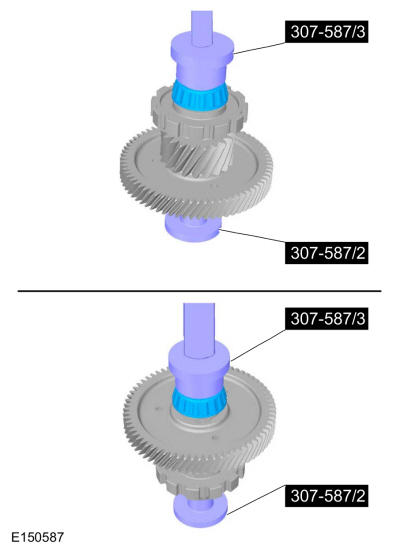

  2. Using the special tool, install the transfer shaft bearings.Use Special Service Tool: 307-587 Differential bearing installer and guide.Use the General Equipment: Hydraulic Press
    GFD261900Courtesy of FORD MOTOR COMPANY
  3. Select a new transfer shaft shim. REFER to: Torque Converter Housing .
