Disassembly And Assembly Of Subassemblies: Differential: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: AWD shown, FWD similar.

    Inspect the differential bearings for damage or excessive wear. Install new bearings if necessary.

    GFD261887Courtesy of FORD MOTOR COMPANY

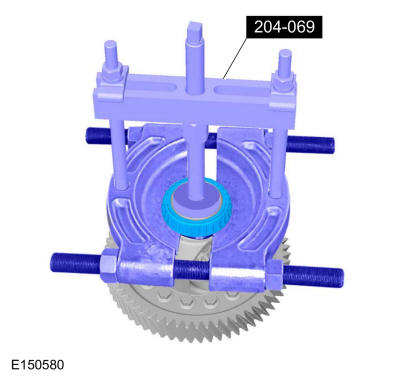

  2. Using Step Plate 205-D015 and special tools, remove the right differential carrier bearing from the differential assembly.Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub.Use the General Equipment: Bearing Separator
    GFD261888Courtesy of FORD MOTOR COMPANY
  3. NOTE: AWD shown, FWD similar.

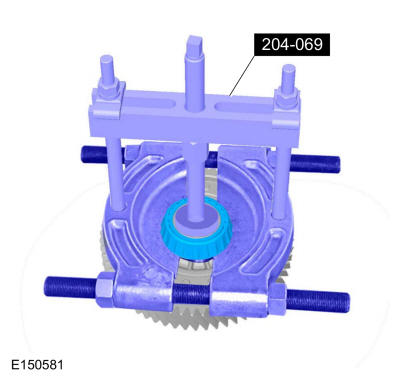

    Using Step Plate 205-D015 and special tools, remove the left differential carrier bearing from the differential assembly.Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub.Use the General Equipment: Bearing Separator

    GFD261889Courtesy of FORD MOTOR COMPANY
  4. NOTE: If replacing the ring gear, it is also necessary to replace the transfer shaft.

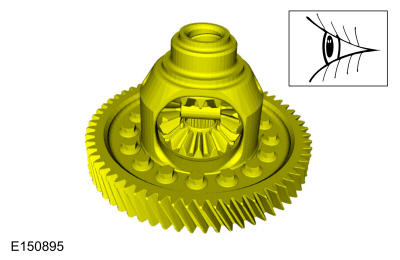

    Inspect the differential assembly and the ring gear for damage and install new, if necessary.

    GFD261890Courtesy of FORD MOTOR COMPANY

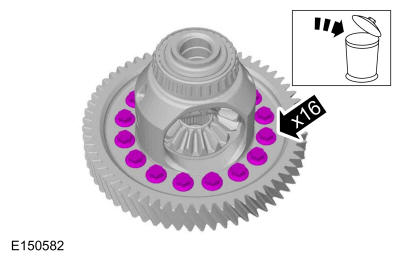

  5. Remove and discard the differential ring gear bolts.
    GFD261891Courtesy of FORD MOTOR COMPANY

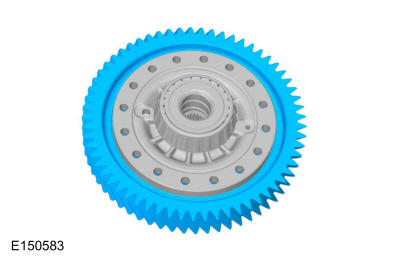

  6. Remove the differential ring gear.
GFD261892Courtesy of FORD MOTOR COMPANY
