Exhaust Flexible Pipe: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: The LH and RH exhaust flexible pipes are covered in this procedure. Remove the exhaust flexible pipe(s) necessary.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Clean all exhaust connections before reassembly.

With the vehicle in NEUTRAL, position it on a hoist.Refer to: Jacking and Lifting - Overview .

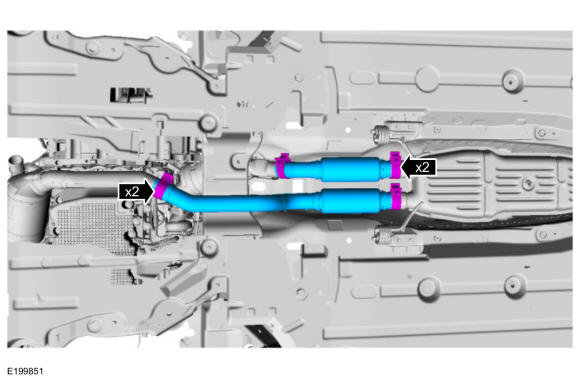

Loosen the clamps and remove the exhaust flexible pipe.
Torque: 41 lb.ft (55 Nm)
