Transmission Fluid Heater Coolant Control Valve: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the battery tray. REFER to: Battery Tray .

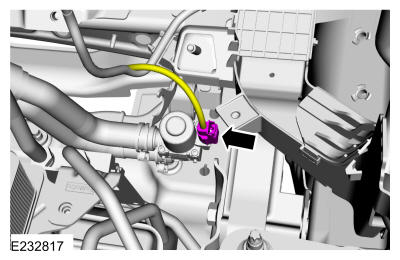

- Disconnect the coolant control valve electrical connector.Use the General Equipment: Hose Clamp(s)

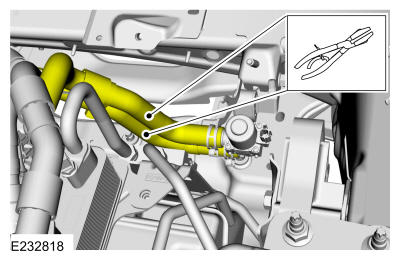

- Clamp off the coolant control valve hoses.

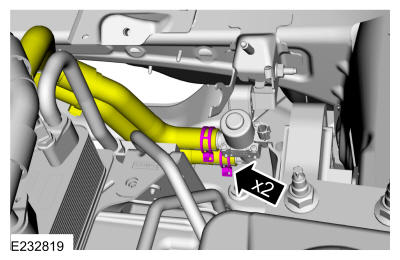

- Release the clamps and disconnect the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: Do not remove the transmission fluid heater coolant control valve from its isolator.

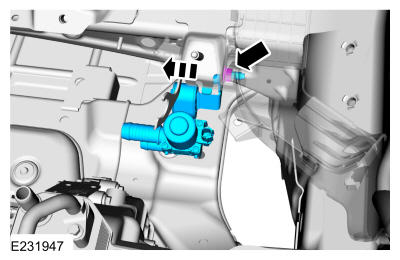

Remove the nut and the transmission fluid heater coolant control valve bracket assembly.
Torque: 177 lb.in (20 Nm)
