Electronic Returnless Fuel System (ERFS)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2016 Lincoln Navigator, 2016 Lincoln MKZ, 2016 Lincoln MKX, 2016 Lincoln MKT, and 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

The ERFS consists of a fuel tank with reservoir, the dual fuel pumps, the fuel rail pressure temperature (FRPT) sensor, the fuel filter, the fuel supply line, the fuel rail, and the fuel injectors. For additional information on the fuel system components, refer to ENGINE CONTROL COMPONENTS . Operation of the system is as follows:

  1. The fuel delivery system is enabled during ignition ON, engine OFF for 1 second (or until fuel rail pressure exceeds target) and during crank (if fuel rail pressure falls below target) or running mode once the PCM receives a crankshaft position (CKP) sensor signal. Commanded rail pressure is a function of fuel rail and engine coolant temperature, with different values commanded during crank vs. normal running.
  2. The fuel pump logic is defined in the fuel system control strategy and executed by the PCM.
  3. The PCM commands a duty cycle to the 2 fuel pump control modules.
  4. The 2 fuel pump control modules modulate the voltage to the 2 fuel pumps (FP) required to achieve the correct fuel pressure. Voltage for the 2 fuel pumps is supplied by the power relay and fuel pump control module relay. For additional information, refer to FUEL PUMP CONTROL - ERFS  and FUEL PUMP MONITOR (FPM) - ERFS .
  5. The FRPT sensor measures the pressure and temperature of the fuel in the fuel rail. The PCM uses this information to vary the duty cycle output to the 2 fuel pump control modules, which change the fuel pressure to compensate for varying loads and to avoid fuel system vaporization.
  6. The fuel injector is a solenoid operated valve that meters the fuel flow to each combustion cylinder. The fuel injector is opened and closed a constant number of times per crankshaft revolution. The amount of fuel is controlled by the length of time the fuel injector is held open. The fuel injector is normally closed, and is operated by a 12 volt source from either the PCM power relay or the fuel pump relay. The ground signal is controlled by the PCM.
  7. There are 3 filtering or screening devices in the fuel delivery system. The intake filters are fine, nylon mesh screens mounted on the intake side of the 2 fuel pumps. There is a fuel filter screen located at the fuel rail side of the fuel injector. The fuel filter assembly is located between the 2 fuel pumps and the fuel rail.
  8. The FP assembly is a device that contains the 2 fuel pumps and the fuel sender assembly. The 2 fuel pumps are located inside the reservoir and supply fuel through the fuel pump assembly manifold to the engine and the fuel pump assembly jet pump.

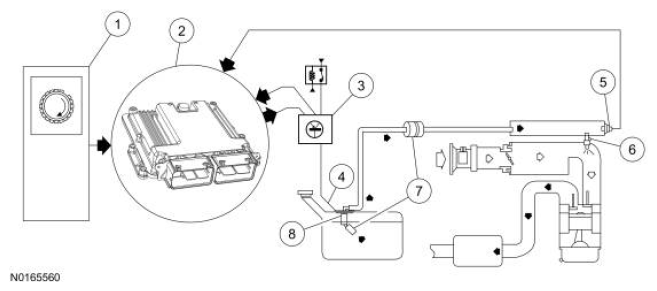

    Fig 1: Electronic Returnless Fuel System (ERFS) Flow Diagram
    G10768990Courtesy of FORD MOTOR CO.

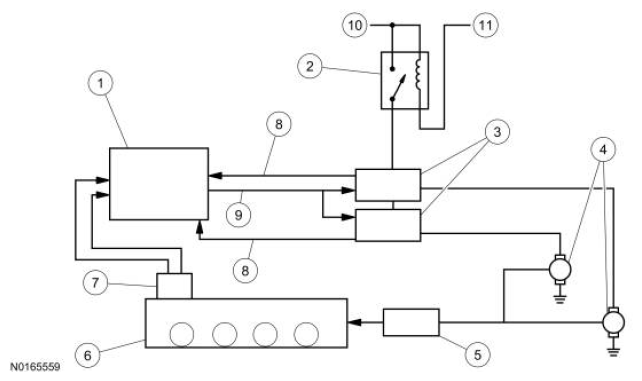

    Fig 2: ERFS Schematic Diagram
    G10768991Courtesy of FORD MOTOR CO.
    Item Number Description
    1 - PCM
    2 - Fuel Pump Control Module Relay 1 And Fuel Pump Control Module Relay 2
    3 - Fuel Pump Control Module 1 And Fuel Pump Control Module 2
    4 - FP Assembly 1 And FP Assembly 2
    5 - Fuel Filter
    6 - Fuel Rail And Injectors
    7 - FRPT Sensor
    8 - Diagnostic
    9 - Pulse Width Modulation
    10 - Power Source
    11 - FP relay command
