Transfer Case Draining and Filling

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

Courtesy of FORD MOTOR COMPANY

Oil Suction Gun 303-D104 (D94T-9000-A)

Material

Item	Specification
Motorcraft ® MERCON ® LV Automatic Transmission FluidXT-10-QLVC (US); CXT-10-LV12 (Canada)	MERCON ® LV
Motorcraft ® Thread Sealant with PTFETA-24-B	WSK-M2G350-A2

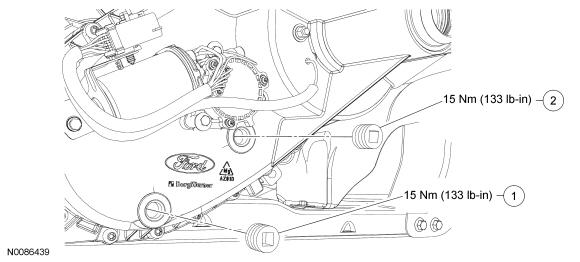

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	7A110	Drain plug
2	7A110	Fill plug

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

2.

NOTE: Position a drain pan under the transfer case.

Remove the drain plug and drain the fluid.

3.

Clean the drain plug and the drain plug area. Apply thread sealant to the drain plug threads and install the drain plug.
- To install, tighten to 15 Nm (133 lb-in).

4.

NOTE: Prior to removal, clean the area around the fill plug.

Remove the fill plug.

5.

NOTE: Incorrect fluid fill will result in transfer case failure.

Using the Oil Suction Gun, fill the transfer case to specification with the recommended fluid.
- Transfer case capacity is 1.3-1.5L (2.7-3.1 pt).
- The fluid must be 10 mm (0.393 in) below the fill plug hole.

Courtesy of FORD MOTOR COMPANY

6.

Apply thread sealant to the fill plug threads, then install the fill plug.
- Tighten to 15 Nm (133 lb-in).
