Muffler and Tailpipe: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not use oil or grease-based lubricants on the isolators. These lubricants may cause deterioration of the isolator. This can lead to separation of the isolator from the exhaust hanger bracket during vehicle operation.

NOTE: Clean all exhaust connections before reassembly.

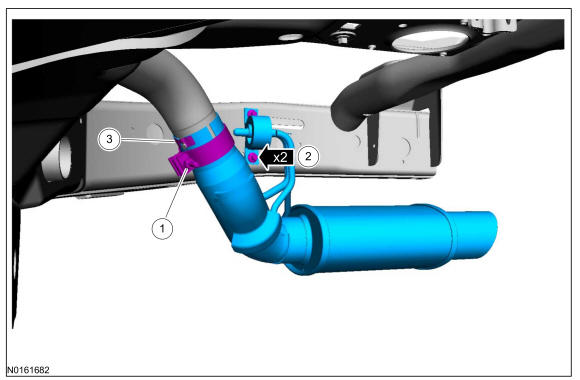

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

2.
- 1.

  Loosen the muffler and tailpipe Torca ® clamp.
  - Tighten to 48 Nm (35 lb-ft).
- 2.

  Remove the bolts from the isolator.
  - Tighten to 25 Nm (18 lb-ft).
- 3.

  Release the locator tab and remove the muffler and tailpipe.

Courtesy of FORD MOTOR COMPANY
