Exhaust Y-Pipe - Dual Catalytic Converter: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not use oil or grease-based lubricants on isolators as they deteriorate the rubber.

NOTE: The exhaust Y-pipe dual catalytic converter is a 2-piece assembly. The Right Hand (RH) and Left Hand (LH) converters can be serviced separately as needed.

NOTE: If the dual catalytic converter is not being replaced, the Heated Oxygen Sensor (HO2S) and the Catalyst Monitor Sensor (CMS) do not need to be removed from the dual catalytic converter. Disconnecting the electrical connectors is still necessary.

NOTE: Clean all exhaust connections before reassembly.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

2.

Detach the wire routing retainers and disconnect the LHHO2S electrical connector.

GFD136092

Courtesy of FORD MOTOR COMPANY

3.

If equipped, release the fasteners and remove the underbody splash shield.

GFD135255

Courtesy of FORD MOTOR COMPANY

4.

Disconnect the LHCMS.

GFD135859

Courtesy of FORD MOTOR COMPANY

5.

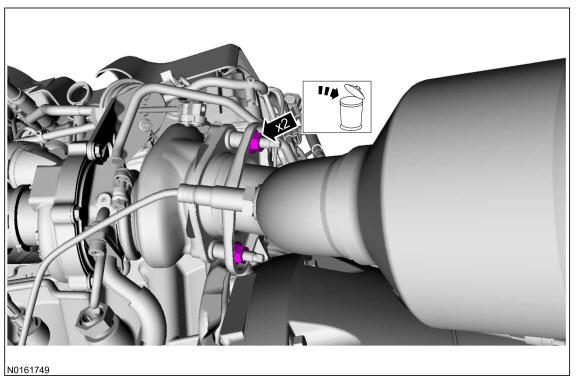

Remove and discard the LH catalytic converter flange nuts.

GFD136580

Courtesy of FORD MOTOR COMPANY

6.

Loosen the clamp and remove the LH catalytic converter.

GFD136581

Courtesy of FORD MOTOR COMPANY

7.

Remove the transmission insulator and retainer. Refer to Automatic Transmission 6R80 .

8.

Disconnect the RHHO2S electrical connector.

GFD136582

Courtesy of FORD MOTOR COMPANY

9.

Disconnect the RHCMS.

GFD135861

Courtesy of FORD MOTOR COMPANY

10.

Remove the bolts from the catalytic converter flange to the muffler.

GFD136578

Courtesy of FORD MOTOR COMPANY

11.

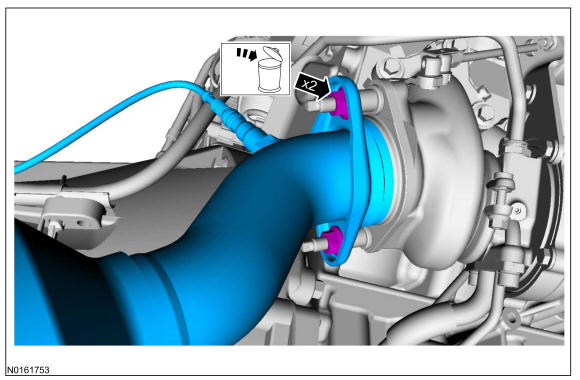

Remove and discard the RH catalytic converter flange nuts. Remove the RH catalytic converter.

GFD136583

Courtesy of FORD MOTOR COMPANY
