Section 626 (Engine Controls - Fuel Charging And Controls - 3.5L GTDI)
>>
Description And Operation
>>
Fuel Charging and Controls
>>
Component Locations
Component Locations
WARNING:
This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

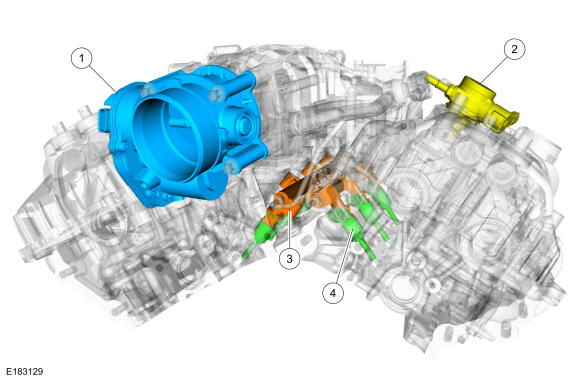

3.5L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
TB
2
Fuel injection pump
3
Fuel rail
4
Fuel injector

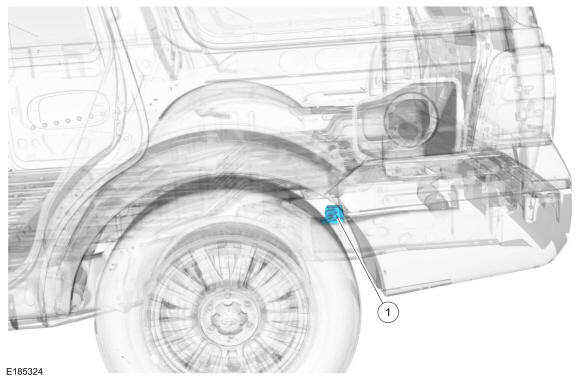

FPCM
Courtesy of FORD MOTOR COMPANY
Item
Description
1
FPCM
