Turbocharger Oil Supply Tube - RH: Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Install the new turbocharger oil tube assembly O-ring seal. Lubricate the new turbocharger oil tube assembly O-ring seal with clean engine oil.

Courtesy of FORD MOTOR COMPANY

2.

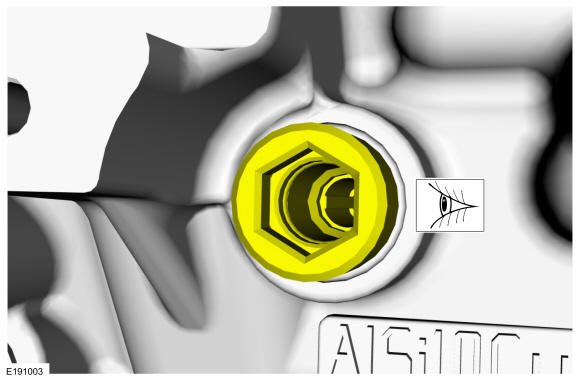

Inspect the turbocharger oil supply tube-to-engine block fitting and replace as needed. Tighten to 42 Nm (31 lb-ft).

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Lubricate the cylinder block bore with clean engine oil.

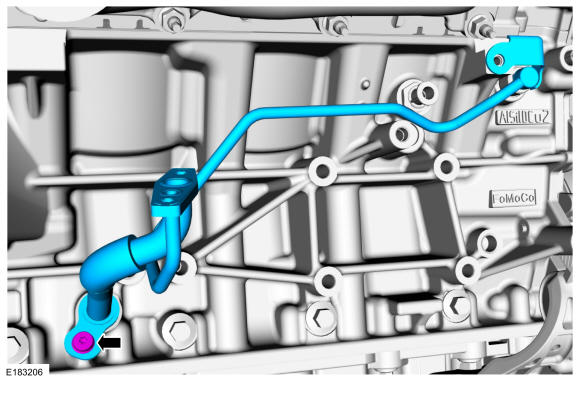

Install the turbocharger oil tube assembly and install the turbocharger oil tube assembly lower bolt.
- Tighten the turbocharger oil tube assembly lower bolt in the following 2 stages.
  - Tighten to 8 Nm (71 lb-in).
  - Tighten an additional 30 degrees.

Courtesy of FORD MOTOR COMPANY

4.

Install the Starter Motor, refer to Starting System .

5.

Install the Turbocharger - RH, refer to Turbocharger - RH .
