Turbocharger Oil Supply Tube - LH: Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Install the new turbocharger oil tube assembly O-ring seal. Lubricate the new turbocharger oil tube assembly O-ring seal with clean engine oil.
- 2.
Inspect the turbocharger oil supply tube-to-engine block fitting and replace as needed. Tighten to 48 Nm (35 lb-ft).
- 3.NOTE: Lubricate the cylinder block bore with clean engine oil.

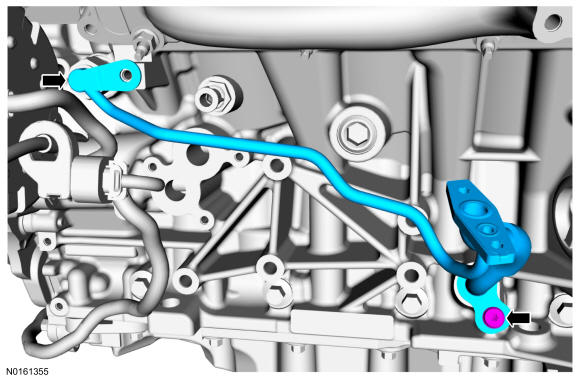

Install the turbocharger oil tube assembly and install the turbocharger oil tube assembly lower bolt.
- Tighten the turbocharger oil tube assembly lower bolt in the following 2 stages.
- Tighten to 8 Nm (71 lb-in).
- Tighten an additional 30 degrees.
- Tighten the turbocharger oil tube assembly lower bolt in the following 2 stages.
- 4.
Install the Turbocharger - LH, refer to Turbocharger - LH .
