Turbocharger - RH: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
- 1.
With the vehicle in NEUTRAL, position it on a hoist, refer to Jacking and Lifting .
- 2.
Drain the cooling system, refer to Engine Cooling .
- 5.
Remove the RF tire, refer to Wheels and Tires .
- 6.
Remove the RF Fender Splash Shield, refer to Front End Body Panels .
- 7.
Remove the Air Cleaner Outlet Pipe, refer to Intake Air Distribution and Filtering .
- 9.
Detach the turbocharger inlet pipe from the bracket. Loosen the turbocharger inlet pipe clamp and remove the turbocharger inlet pipe.
- 10.
Disconnect the turbocharger outlet pipe hose and detach the turbocharger outlet pipe from the bracket. Loosen the turbocharger outlet pipe clamps and remove the turbocharger outlet pipe.
- 11.
Remove the Brake Vacuum Pump, refer to Power Brake Actuation .
- 12.
Remove the A/C Compressor Belt, refer to Accessory Drive .
- 16.NOTE: Use a 3/8" Jiffy-Tite ® quick disconnect tool, close the tool around the tube, press the tool into the fitting and rotate until the tool is fully seated into the fitting.

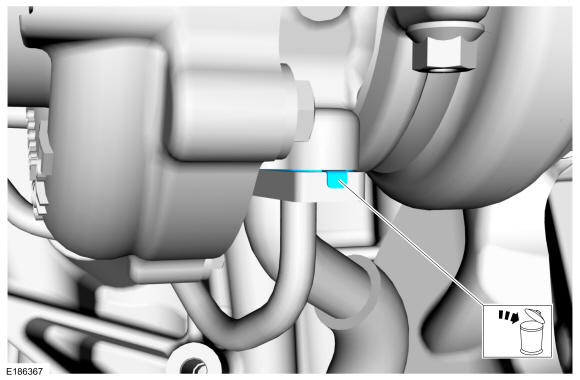

Disconnect the turbocharger coolant return tube at the turbocharger and position the turbocharger coolant return tube up out of the way.
- 21.

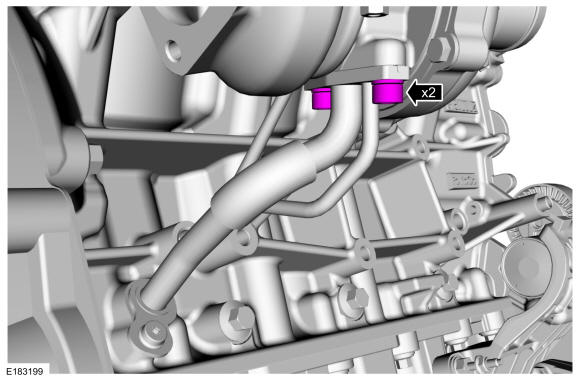

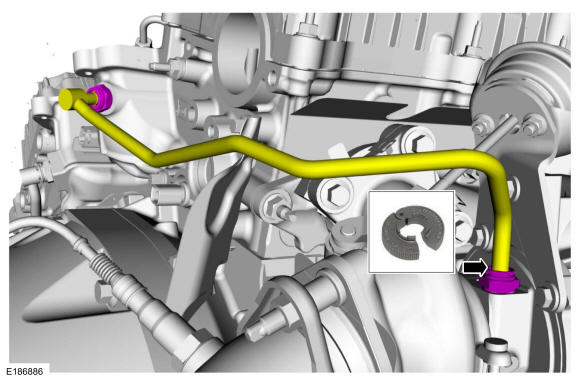

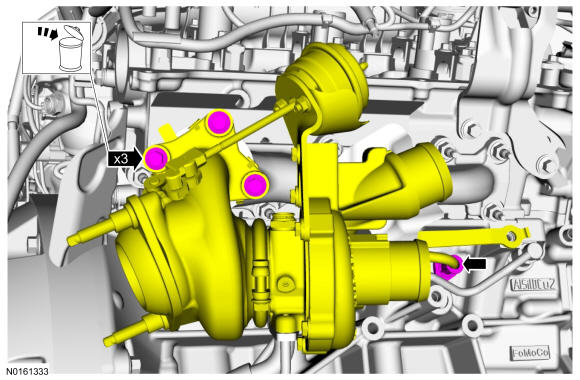

Remove the and discard the turbocharger mounting bolts, remove the turbocharger coolant supply tube from the block fitting while removing the turbocharger and position the turbocharger aside.
- 22.NOTE: Use a 3/8" Jiffy-Tite ® quick disconnect tool, close the tool around the tube, press the tool into the fitting and rotate until the tool is fully seated into the fitting.

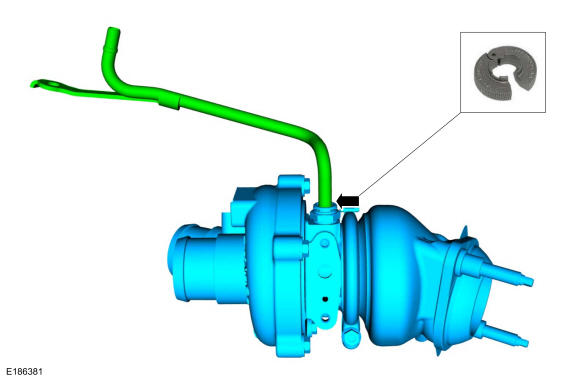

Disconnect the turbocharger coolant supply tube from the turbocharger fitting and remove the turbocharger coolant supply tube. Remove the turbocharger.
- 24.

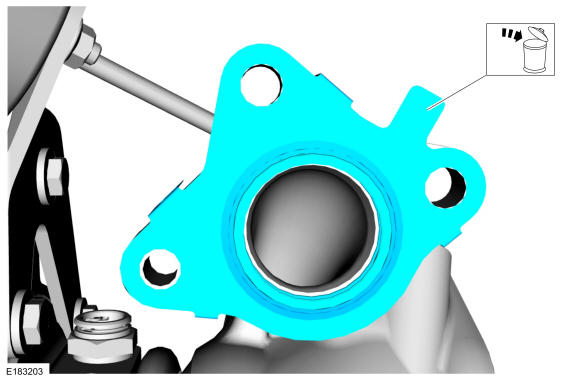

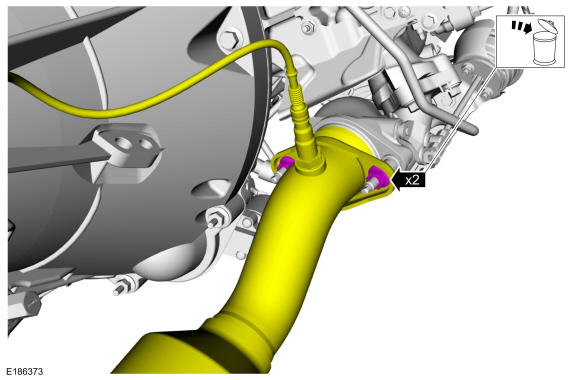

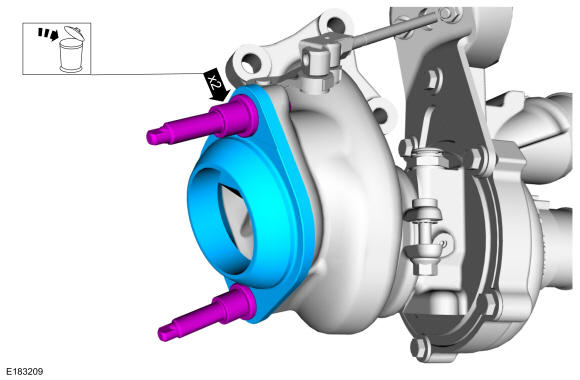

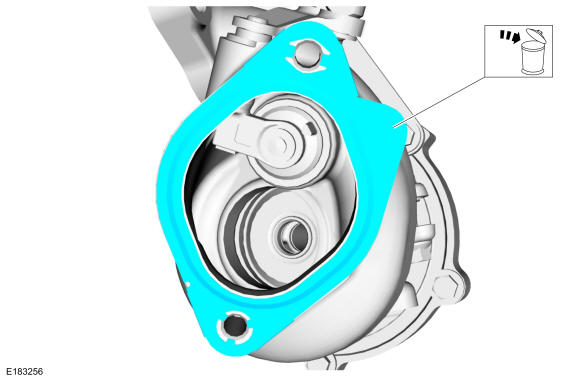

Remove and discard the turbocharger exhaust adapter studbolts and then remove the turbocharger exhaust adapter.
