Air Conditioning (A/C) Compressor Belt: Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.NOTE: Typical application shown.
Position the A/C compressor belt in 2 stages.
- Stage 1: Slide the A/C compressor belt between the crankshaft pulley and the accessory drive belt tensioner.
- Stage 2: Position the A/C compressor belt behind the crankshaft pulley with the accessory drive belt ribs facing towards the front of the vehicle.
-
NOTE: Make sure the A/C compressor belt is correctly seated on the A/C compressor pulley.
Stage 3: Position the A/C compressor belt onto the A/C compressor pulley with the lower portion of the accessory drive belt ribs facing towards the front of the vehicle and above the oil pan as shown.
- 2.NOTE: Typical application shown.

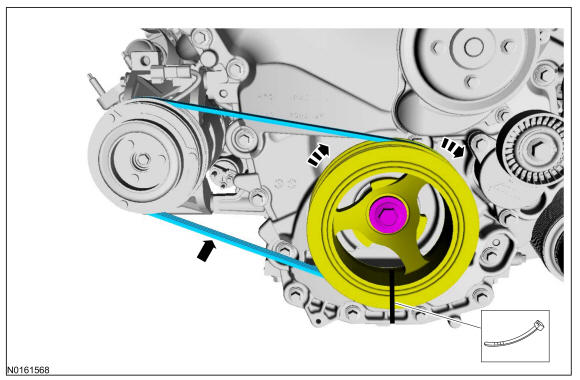

Position the A/C compressor belt onto the top of the crankshaft pulley and feed a tie strap with a minimum width of 3 mm (0.12 in) through the crankshaft pulley spokes, up and over the A/C compressor belt and tighten the tie strap.
- 3.NOTE: The A/C compressor belt must be above the oil pan flange or damage to the A/C compressor belt and engine can occur.NOTE: After installation, make sure the A/C compressor belt is correctly seated on the crankshaft and A/C compressor pulleys.
Install the A/C compressor belt.
- With the A/C compressor belt positioned above the oil pan flange, rotate the crankshaft by hand clockwise until the tie strap is at the 6 o'clock position.
- Remove the tie strap and rotate the crankshaft clockwise 1 full rotation to verify the A/C compressor belt has correctly seated onto the crankshaft and A/C compressor pulleys.
- 6.
Install the accessory drive belt. Refer to Accessory Drive Belt .
