Exhaust Manifold - LH: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting

2.

Remove the LH turbocharger. Refer to: Fuel Charging and Controls - Turbocharger, 3.5L GTDI .

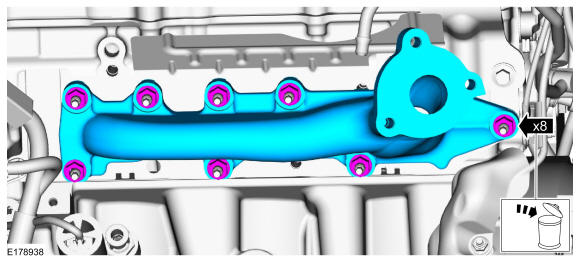

3.
- Remove and discard the nuts.
- Remove the exhaust manifold.

Courtesy of FORD MOTOR COMPANY

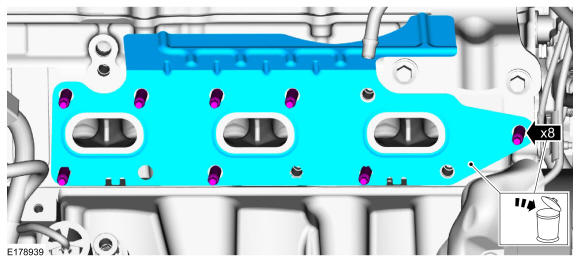

4.

Remove and discard the exhaust manifold gasket and studs.

Courtesy of FORD MOTOR COMPANY

5.
- Clean and inspect the exhaust manifold. Refer to: Engine System General Information
- NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces. Clean the exhaust manifold mating surface of the cylinder head with metal cleaner

  Clean the exhaust manifold mating surface of the cylinder head with metal cleaner. Follow the directions on the packaging.
