In-Vehicle Repair: Camshafts: Installation

RH camshafts

• 1.

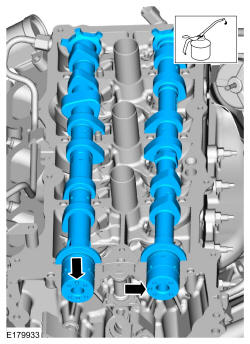

  Lubricate the camshafts with clean engine oil and position the camshafts onto the RH cylinder head in the neutral position as shown.

Courtesy of FORD MOTOR COMPANY

• 2.


  NOTE: The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.

  Rotate counterclockwise to the 9 o'clock position.

Courtesy of FORD MOTOR COMPANY

• 3.


  NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

  Position the camshaft seals gaps at 12 o'clock.

Courtesy of FORD MOTOR COMPANY

• 4.


  NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

  Install the camshaft caps, oil tube and the bolts.

  • Tighten to 8 Nm (71 lb-in) then additional 45 degrees.

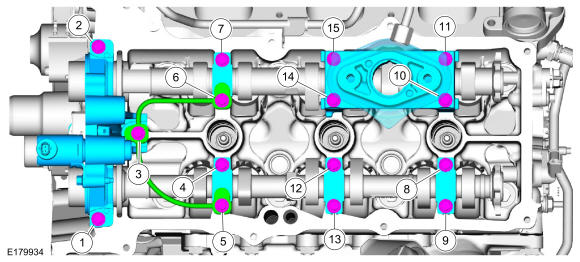

Fig 1: RH Camshaft Tightening Sequence (1 of 2)

Courtesy of FORD MOTOR COMPANY

• 5.

  Loosen the camshaft cap bolts.

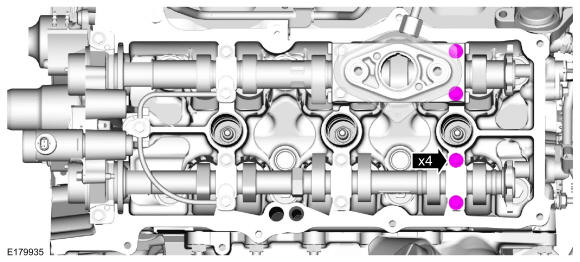

Courtesy of FORD MOTOR COMPANY

• 6.

  Tighten the camshaft cap bolts.
  • Tighten to 8 Nm (71 lb-in) then additional 45 degrees.

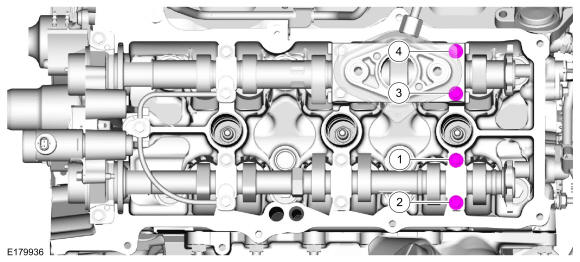

Fig 2: RH Camshaft Tightening Sequence (2 of 2)

Courtesy of FORD MOTOR COMPANY

• 7.


  NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
  NOTE: Use a camshaft sprocket bolt to turn the camshafts.

  Using a feeler gauge, confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Check .

Courtesy of FORD MOTOR COMPANY

• 8.

  Apply 8 mm (0.314 in) dots of sealant to the camshaft bearing cap as shown.

Courtesy of FORD MOTOR COMPANY

• 9.

  Install the camshaft bearing cap and bolts.
  • Tighten to 10 Nm (89 lb-in) then additional 45 degrees.

Courtesy of FORD MOTOR COMPANY

• 10.

  Remove the bolts and the RH oil tube.

Courtesy of FORD MOTOR COMPANY

• 11.

  Rotate the RH camshafts to Top Dead Center (TDC).

Courtesy of FORD MOTOR COMPANY

• 12.


  NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

  Install the Camshaft Holding Tool.

Courtesy of FORD MOTOR COMPANY

• 13.


  NOTE: The VCT oil control solenoids are removed for clarity.

  Install the Secondary Chain Hold Down.

Courtesy of FORD MOTOR COMPANY

• 14.

  Install the brake vacuum pump. Refer to: Power Brake Actuation .

LH camshafts

• 15.

  Lubricate the camshafts with clean engine oil and position the camshafts onto the LH cylinder head in the neutral position as shown.

Courtesy of FORD MOTOR COMPANY

• 16.


  NOTE: The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.

  Rotate counterclockwise to the 9 o'clock position.

Courtesy of FORD MOTOR COMPANY

• 17.


  NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

  Position the camshaft seals gaps at 12 o'clock.

Courtesy of FORD MOTOR COMPANY

• 18.


  NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

  Install the camshaft caps, oil tube and the bolts.

  • Tighten to 8 Nm (71 lb-in) then additional 45 degrees.

Fig 3: LH Camshaft Tightening Sequence (1 of 2)

Courtesy of FORD MOTOR COMPANY

• 19.

  Loosen the camshaft cap bolts.

Courtesy of FORD MOTOR COMPANY

• 20.

  Tighten the camshaft cap bolts.
  • Tighten to 8 Nm (71 lb-in) then additional 45 degrees.

Fig 4: LH Camshaft Tightening Sequence (2 of 2)

Courtesy of FORD MOTOR COMPANY

• 21.


  NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
  NOTE: Use a camshaft sprocket bolt to turn the camshafts.

  Using a feeler gauge, confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Check .

Courtesy of FORD MOTOR COMPANY

• 22.

  Remove bolts and the LH oil tube.

Courtesy of FORD MOTOR COMPANY

• 23.

  Rotate the LH camshafts to the TDC.

Courtesy of FORD MOTOR COMPANY

• 24.


  NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

  Install the Camshaft Holding Tool.

Courtesy of FORD MOTOR COMPANY

• 25.


  NOTE: The VCT oil control solenoids are removed for clarity.

  Install Secondary Chain Hold Down.

Courtesy of FORD MOTOR COMPANY

All camshafts

• 26.

  Rotate the crankshaft clockwise 60 degrees to the TDC position (crankshaft dowel pin at 11 o'clock).

Courtesy of FORD MOTOR COMPANY

• 27.

  Install the LH or RH VCT housing. Refer to: Variable Camshaft Timing (VCT) Housing .
