Steering Wheel Controls - Navigator: Notes

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

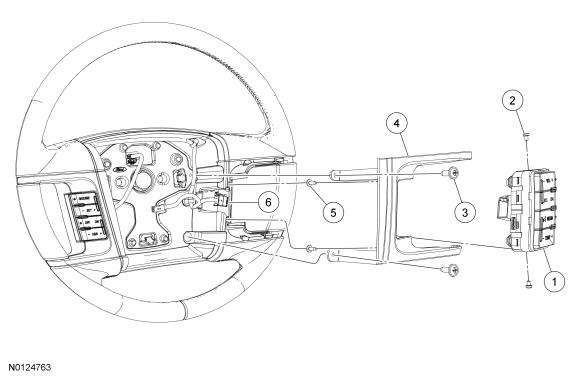

GFD136981Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 9C888 Steering wheel controls
2 - Steering wheel controls screws (part of 3600) (2 required)
3 - Steering wheel controls front bezel screws (part of 3600) (2 required)
4 - Steering wheel controls bezel (part of 3600)
5 - Steering wheel controls rear bezel screws (part of 3600) (2 required)
6 - Steering wheel controls electrical connector (part of 3600)
