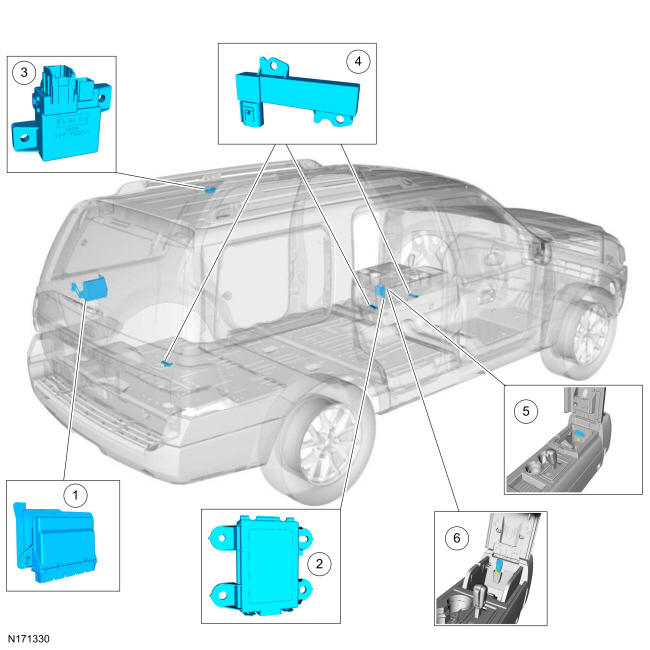

Component Location
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RFA Module |
| 2 |
Backup Transceiver |
| 3 |
TPM Module |
| 4 |
PATS Antennas (3 required) |
| 5 |
Backup starting location (Expedition) |
| 6 |
Backup starting location (Navigator) |
