Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

1.

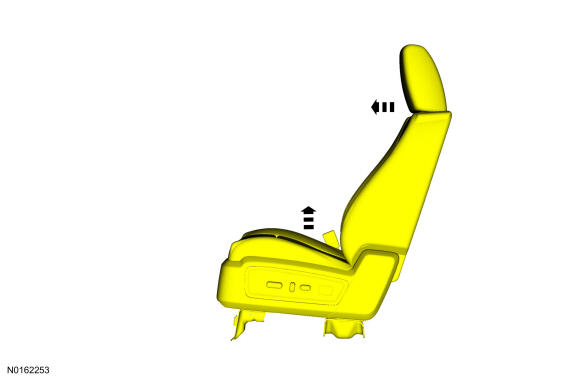

Position the front seat upward and the seat backrest forward.

GFD137622

Courtesy of FORD MOTOR COMPANY

2.

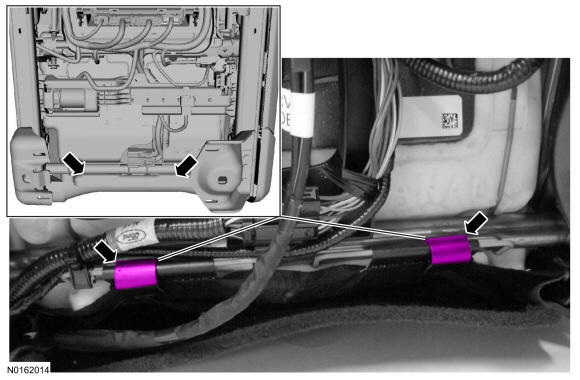

Release the backrest cover lower retainers.

GFD137602

Courtesy of FORD MOTOR COMPANY

3.

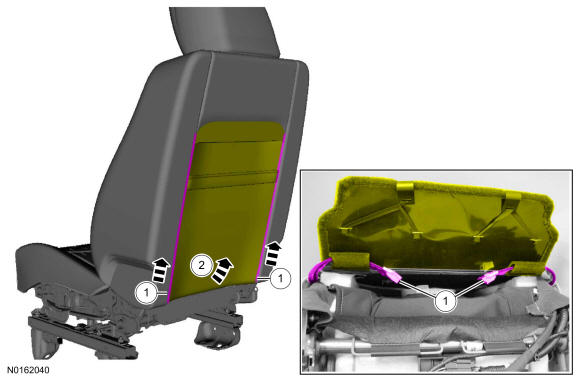

Open the backrest cover.
1. 1.

  Unzip the backrest cover zippers on each side.
1. 2.

  Position the backrest cover aside.

GFD137623

Courtesy of FORD MOTOR COMPANY

4.

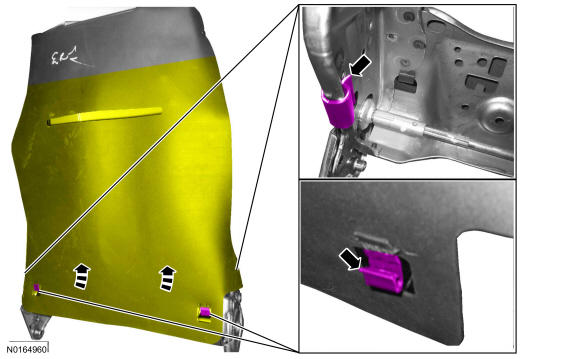

If equipped, detach the clips and open the panel.

GFD137624

Courtesy of FORD MOTOR COMPANY

5.

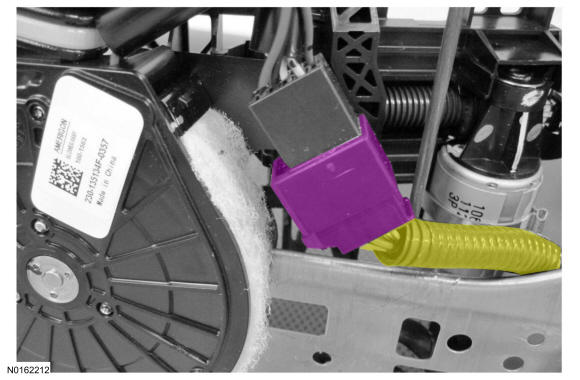

Disconnect the seat backrest TED electrical connector.

GFD137625

Courtesy of FORD MOTOR COMPANY

6.

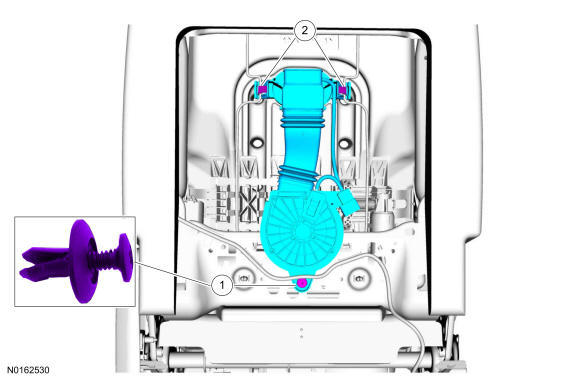

Remove the seat backrest TED.
1. 1.

  Remove the scrivet.
1. 2.

  Detach the retainer clips from the backrest frame support wires.

GFD137626

Courtesy of FORD MOTOR COMPANY

7.

To install, reverse the removal procedure.
