Seat Armrest - Second Row: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH similar, RH shown.
- 1.
Pivot the armrest to the vertical position.
- 2.

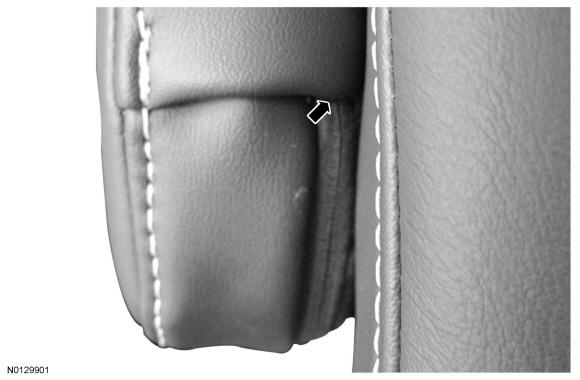

Locate the armrest cover zipper in the armrest cover zipper pocket.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

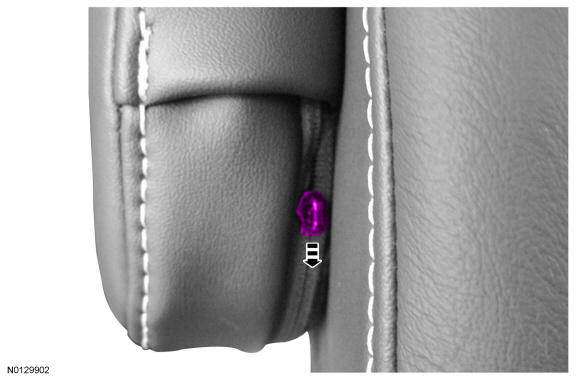

Unzip the armrest cover.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Partially invert the armrest cover to access the armrest pivot bolt.
- 5.

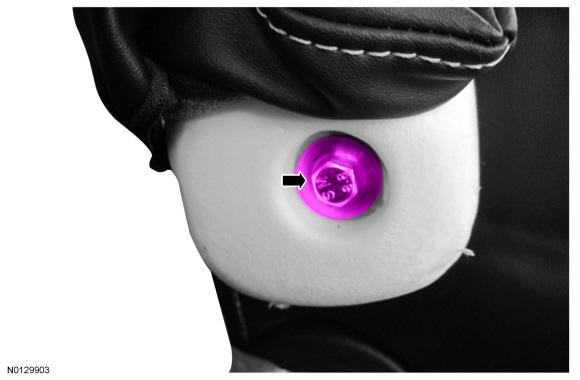

Remove the armrest pivot bolt and the armrest.
 Courtesy of FORD MOTOR COMPANY
|
