Thermostat Housing: Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Install a new gasket and a new O-ring seal.
    • Lubricate the O-ring seal with clean engine coolant.
GFD135676Courtesy of FORD MOTOR COMPANY

  1. 2.

    Install a new gasket and a new O-ring seal.
    • Lubricate the O-ring seal with clean engine coolant.
GFD135677Courtesy of FORD MOTOR COMPANY

  1. 3.

    Position the thermostat housing and install the bolts.
    • Stage 1: Tighten to 8 Nm (71 lb-in)
    • Stage 2: Tighten an additional 45 degrees.
Fig 1: Thermostat Housing Tightening Sequence
GFD135678Courtesy of FORD MOTOR COMPANY

  1. 4.

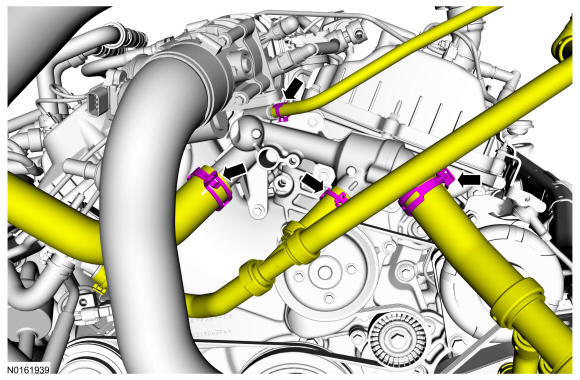

    Connect the hoses to the thermostat housing and position the clamps.
GFD135672Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the waterproof plastic from the accessory drive belts.

  1. 6.

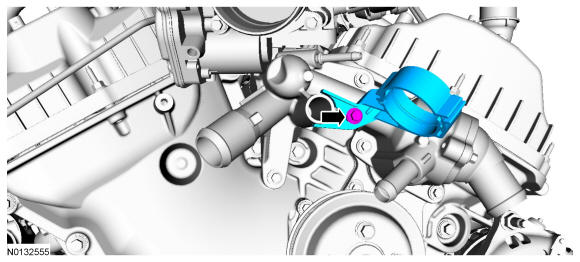

    Install the LH turbocharger-to-CAC tube bracket and the bolt.
    • Tighten to 6 Nm (53 lb-in).
GFD135671Courtesy of FORD MOTOR COMPANY

  1. 7.

    If equipped, connect the block heater electrical connector and clip the vapor tube to the retaining clip.
GFD135176Courtesy of FORD MOTOR COMPANY

  1. 8.

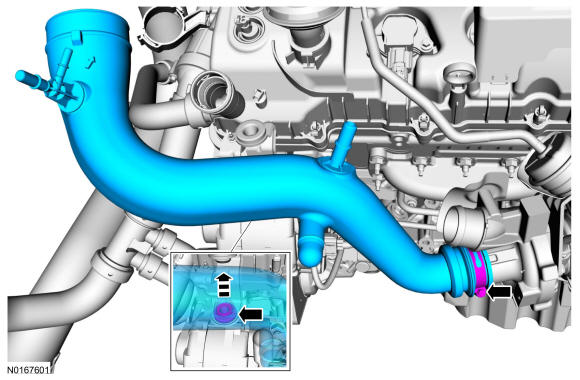

    Install the turbocharger inlet tube and tighten the clamp.
    • Tighten to 5.0 Nm (44 lb-in).
GFD135670Courtesy of FORD MOTOR COMPANY

  1. 9.

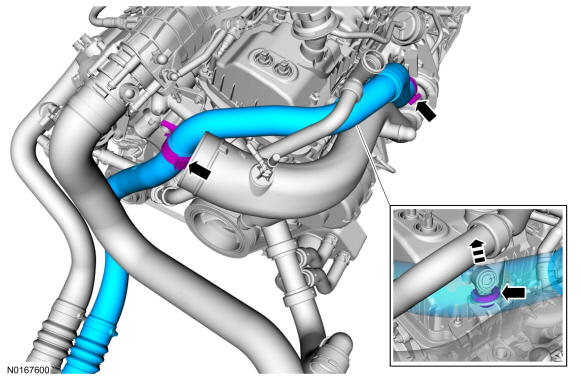

    Install the turbocharger outlet tube and tighten the clamp. Secure the turbocharger outlet tube retainer.
    • Tighten to 5.0 Nm (44 lb-in).
GFD135174Courtesy of FORD MOTOR COMPANY

  1. 10.

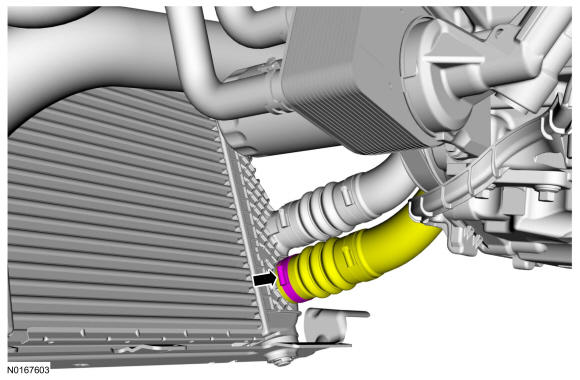

    Connect the LH turbocharger outlet tube to the CAC and tighten the clamp.
    • Tighten to 5.0 Nm (44 lb-in).
GFD135173Courtesy of FORD MOTOR COMPANY

  1. 11.

    Install the lower air deflector and the retainers.
GFD135181Courtesy of FORD MOTOR COMPANY

  1. 12.

    1. 1.

      Connect the PCV tube.

    1. 2.

      Connect the PCV pressure sensor electrical connector.
GFD135126Courtesy of FORD MOTOR COMPANY

  1. 13.

    Connect the turbocharger bypass tube and the quick connect couplings, refer to Fuel System General Information .
GFD135127Courtesy of FORD MOTOR COMPANY

  1. 14.

    NOTE: Install the oil fill cap to prevent debris from falling into the engine.

    Remove the oil fill cap and the engine appearance cover.

    • Install the oil fill cap.
GFD135669Courtesy of FORD MOTOR COMPANY

  1. 15.

    Install the Air Cleaner (ACL) outlet pipe. For additional information, refer to Intake Air Distribution and Filtering .

  1. 16.

    Fill and bleed the engine cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding .
