Coolant Pump: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the air cleaner outlet pipe. For additional information, refer to Intake Air Distribution and Filtering .

  1. 2.

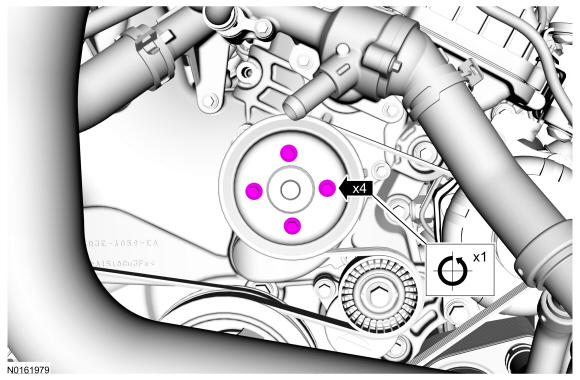

    Loosen the coolant pump pulley bolts.
GFD135626Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the accessory drive belt. For additional information, refer to Accessory Drive .

  1. 4.

    NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.

    Completely cover the A/C compressor belt with waterproof plastic.

  1. 5.

    Remove the thermostat housing. For additional information, refer to Thermostat Housing .

  1. 6.

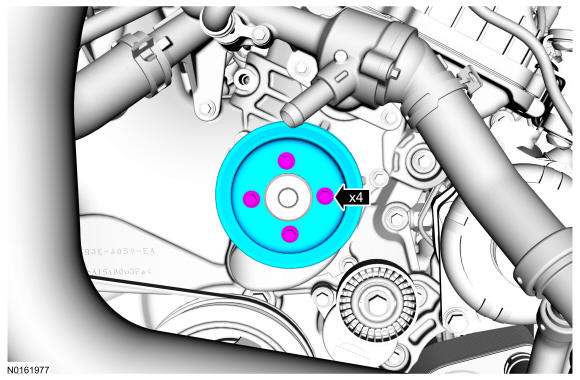

    Remove the bolts and the coolant pump pulley.
GFD135627Courtesy of FORD MOTOR COMPANY

  1. 7.

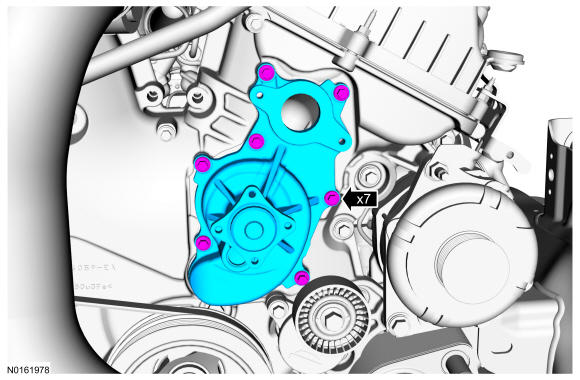

    Remove the bolts and the coolant pump.
GFD135628Courtesy of FORD MOTOR COMPANY

  1. 8.

    Remove and discard the coolant pump gasket and O-ring seal.
GFD135629Courtesy of FORD MOTOR COMPANY
