Transmission Fluid Cooler Tubes: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

2.

Remove the pushpins, rotate the 1/4-turn retainers and remove the lower air deflector.

Courtesy of FORD MOTOR COMPANY

3.

Remove the transmission fluid cooler tube secondary latches.

Courtesy of FORD MOTOR COMPANY

4.

Using the special tool, disconnect the transmission fluid cooler tubes fittings.

Courtesy of FORD MOTOR COMPANY

5.

Rotate the 1/4 turn retainers and remove the transmission shield.

Courtesy of FORD MOTOR COMPANY

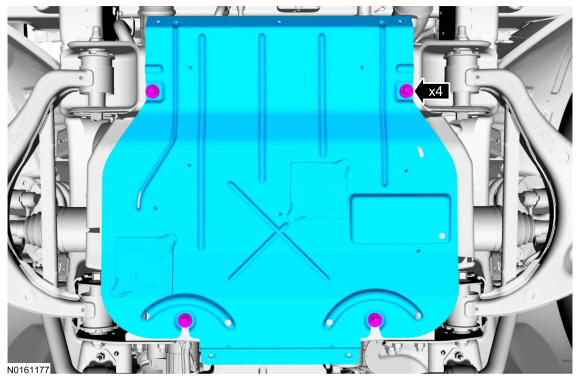

6.

Remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY

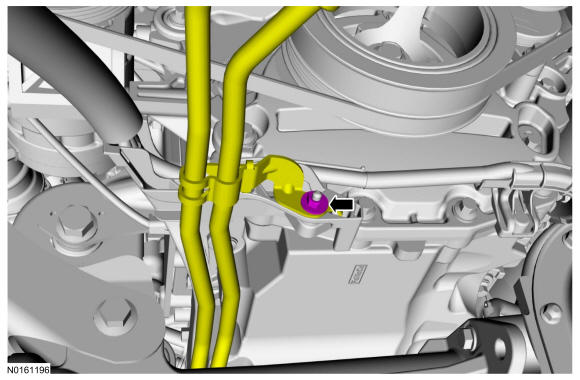

7.

Remove the transmission fluid cooler tube bracket nut from the front of the engine and detach the bracket.

Courtesy of FORD MOTOR COMPANY

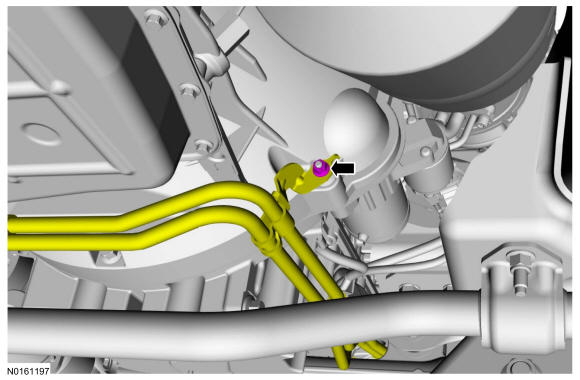

8.

Remove the transmission fluid cooler tube bracket nut from the RH side of the transmission and detach the bracket.

Courtesy of FORD MOTOR COMPANY

9.

Remove the nut and the heat shield.

Courtesy of FORD MOTOR COMPANY

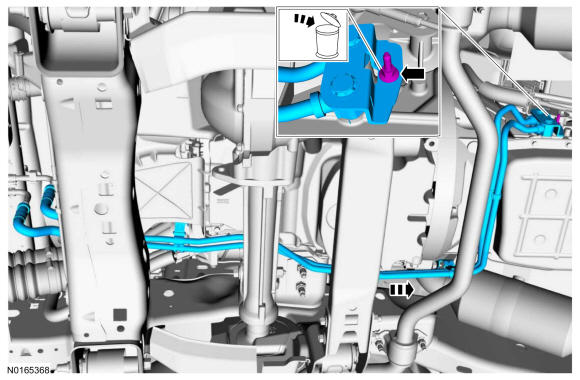

10.

NOTE: The transmission fluid cooler tube O-rings may remain in the transmission case. Carefully remove them from the case if retained.

Remove and discard the transmission fluid cooler tube bracket stud bolt and remove the transmission fluid cooler tubes.

Courtesy of FORD MOTOR COMPANY
