Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Inspect the transmission case to make sure that the transmission fluid cooler tube O-rings did not remain in the transmission case. Carefully remove and discard them from the case if retained.

Install 4 new O-rings on the transmission fluid cooler tubes.

Courtesy of FORD MOTOR COMPANY

2.

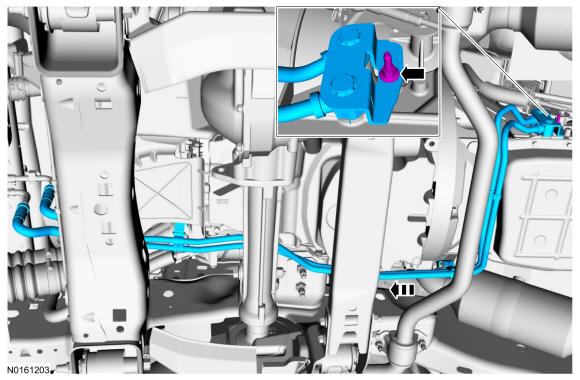

Install the transmission fluid cooler tubes and a new transmission fluid cooler tubes bracket stud bolt.
- Tighten to 25 Nm (18 lb-ft).

Courtesy of FORD MOTOR COMPANY

3.

Install the heat shield and the nut.
- Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY

4.

Attach the transmission fluid cooler tube bracket to the RH side of the transmission and install the nut.
- Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY

5.

Attach the transmission fluid cooler tube bracket to the front of the engine and install the nut.
- Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY

6.

Install the skid plate and the bolts.
- Tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

7.

Install the transmission shield and rotate the 1/4 turn retainers.

Courtesy of FORD MOTOR COMPANY

8.

Connect the transmission fluid cooler tubes fittings.

Courtesy of FORD MOTOR COMPANY

9.

Install the transmission fluid cooler tube secondary latches.

Courtesy of FORD MOTOR COMPANY

10.

Install the lower air deflector, install the pushpins and rotate the 1/4-turn retainers.

Courtesy of FORD MOTOR COMPANY

11.

Fill the transmission with fluid and verify correct operation. Refer to Automatic Transmission 6R80 .
