Transmission Fluid Cooler Hoses: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

Remove the front bumper cover. Refer to Bumpers .

Vehicles with an auxiliary transmission fluid cooler

2.

Release the clamps and remove the transmission fluid cooler-to-transmission auxiliary fluid cooler hose.

GFD136385

Courtesy of FORD MOTOR COMPANY

3.

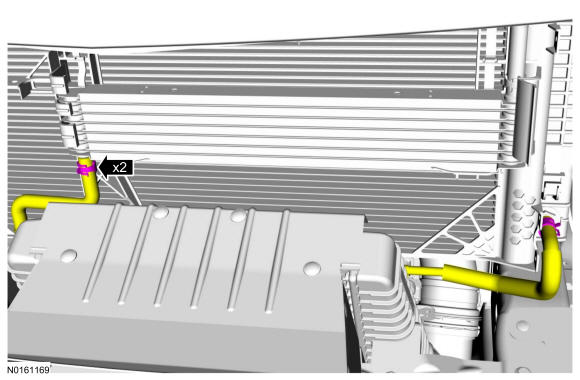

Release the clamps and disconnect the transmission fluid cooler hoses from the transmission fluid coolers.

GFD136386

Courtesy of FORD MOTOR COMPANY

Vehicles without an auxiliary transmission fluid cooler

4.

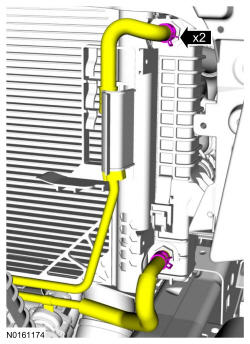

Release the clamps and disconnect the hoses from the transmission fluid cooler.

GFD136387

Courtesy of FORD MOTOR COMPANY

All vehicles

5.

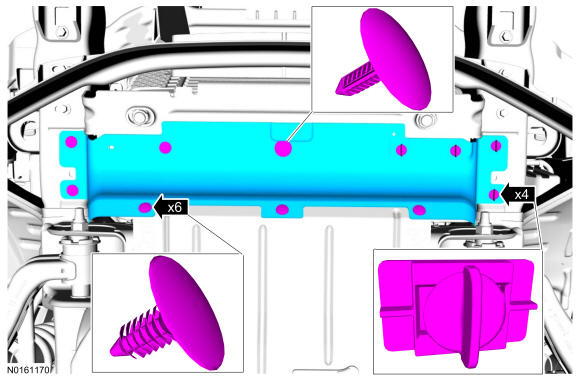

Remove the pushpins, rotate the 1/4-turn retainers and remove the lower air deflector.

GFD136388

Courtesy of FORD MOTOR COMPANY

6.

Remove the transmission fluid cooler tubes secondary latches.

GFD136389

Courtesy of FORD MOTOR COMPANY

7.

Using the special tool, disconnect the transmission fluid cooler tubes fittings.

GFD136390

Courtesy of FORD MOTOR COMPANY

8.

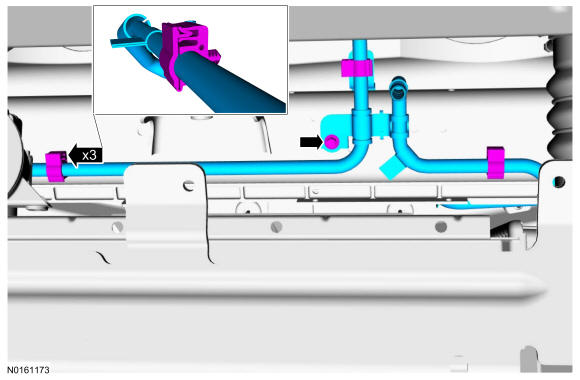

Open the latches, remove the bolt and remove the transmission fluid cooler hoses.

GFD136391

Courtesy of FORD MOTOR COMPANY
