Fuel Lines: Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

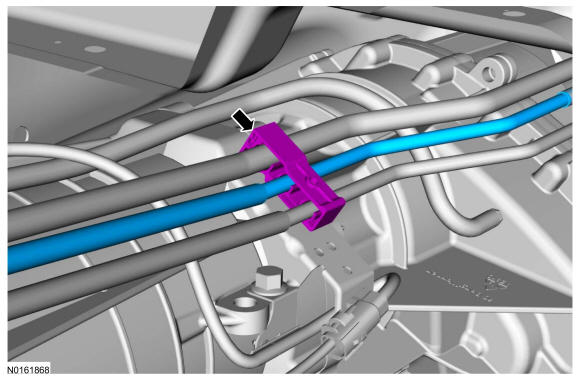

Insert fuel supply line into the bracket on the upper bell housing.

Courtesy of FORD MOTOR COMPANY

2.

Install the fuel supply line into the bracket at the rear of the transmission.

Courtesy of FORD MOTOR COMPANY

3.

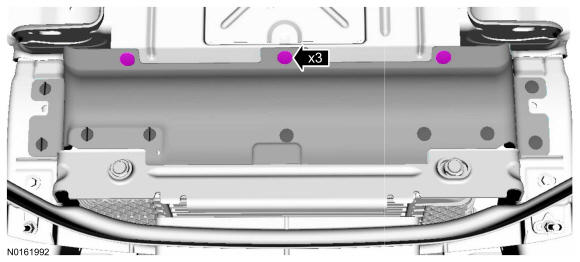

Install the selector lever cable bracket and selector lever cable bracket bolts.
- Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

4.

Adjust the selector lever cable and install the selector lever cable end on the manual control lever. Verify the selector lever cable is correctly adjusted. Refer to: Automatic Transmission External Controls .
