Intelligent Access (IA) Antenna

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the left rear door trim panel. Interior Trim and Ornamentation

  1. 2.

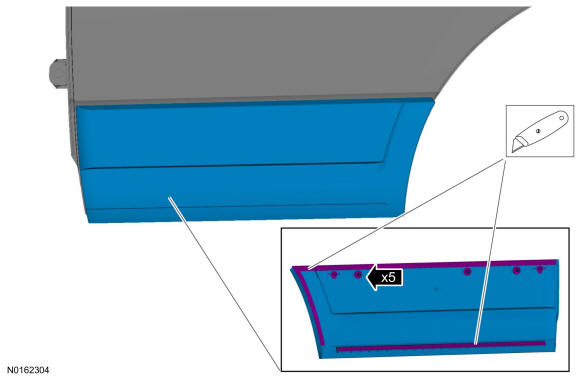

    Remove the left rear door cladding.
GFD137839Courtesy of FORD MOTOR COMPANY

  1. 3.

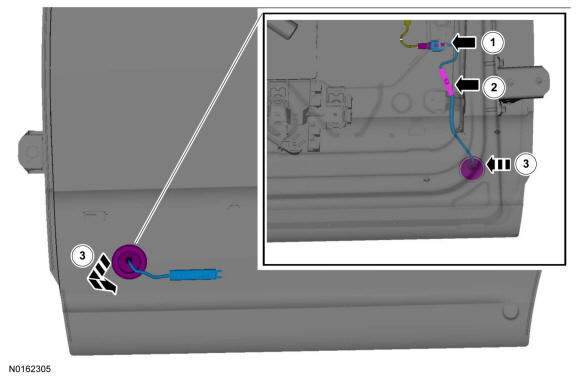

    Remove the Intelligent Access (IA) antenna.

    1. 1.

      Disconnect the IA antenna electrical connector.

    1. 2.

      Disconnect the harness routing clip.

    1. 3.

      Remove the IA antenna.
GFD137840Courtesy of FORD MOTOR COMPANY

  1. 4.

    To install, reverse the removal procedure.
