Parking Brake Shoes: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
| Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound XG-3-A | ESE-M1C171-A |

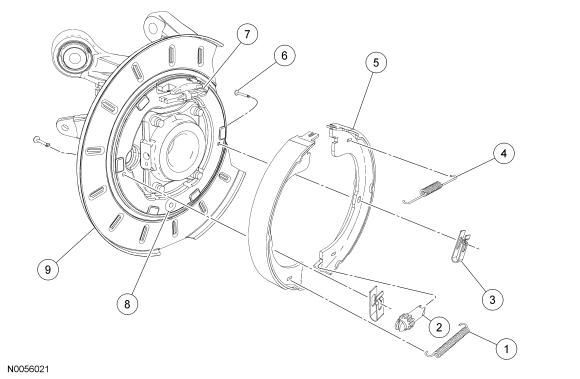

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Parking brake shoe adjuster spring (part of 2648) |
| 2 | 2041 | Parking brake shoe adjuster |
| 3 | - | Parking brake shoe retaining clip (2 required) (part of 2648) |
| 4 | - | Parking brake shoe return spring (part of 2648) |
| 5 | 2A753 | Parking brake shoe (part of 2648) |
| 6 | - | Parking brake shoe retaining pin (2 required) (part of 2648) |
| 7 | 2404 | Parking brake shoe lever boot (Navigator/Expedition) |
| 8 | 2092 | Adjuster hole plug |
| 9 | 2C029 LH/ 2C028 RH LH/ 2C028 RH | Brake disc shield |
