Video Camera - Expedition: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the liftgate trim panel. For additional information, refer to Interior Trim and Ornamentation .
- Position the water shield aside.

2.

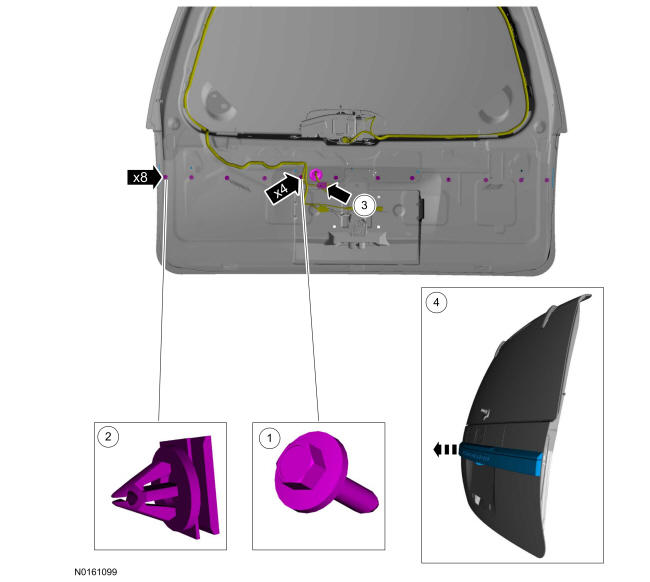

Remove the license lamp housing.
1. 1.

  Remove the 4 bolts.
1. 2.

  Squeeze the tabs and release the 8 fasteners.
1. 3.

  Disconnect the electrical connector and push the wire grommet through the liftgate exterior panel.
1. 4.

  Remove the license lamp housing.

Courtesy of FORD MOTOR COMPANY

3.

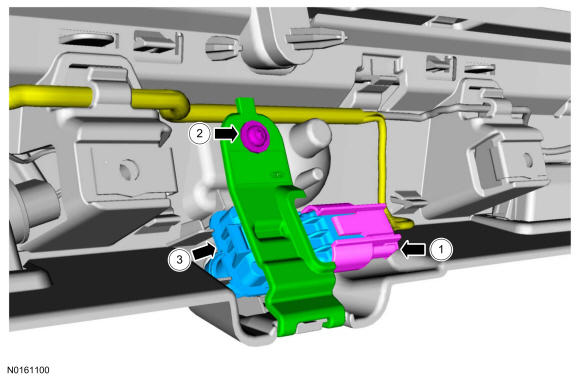

Remove the rear view camera.
1. 1.

  Disconnect the rear view camera electrical connector.
1. 2.

  Remove the screw and the camera retaining plate.
1. 3.

  Remove the rear view camera.

Courtesy of FORD MOTOR COMPANY
