Transmission Insulator and Retainer: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to
Jacking and Lifting
.
- 2.
Remove the transmission support crossmember. Refer to
Full Frame and Body Mounting
.
Rear Wheel Drive (RWD) vehicles
- 3.
Remove the bolt and the LH isolator cap.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

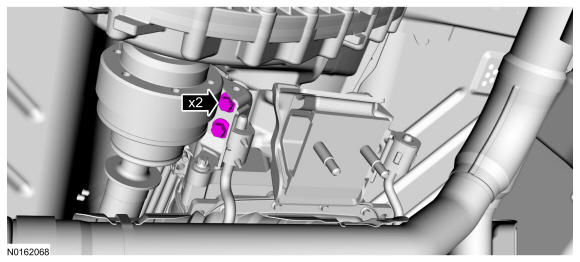

Remove the transmission insulator and retainer bolts.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Remove the transmission insulator and retainer.
 Courtesy of FORD MOTOR COMPANY
|
Four-Wheel Drive (4WD) vehicles
- 6.
Remove the bolt and the LH isolator cap.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Remove the LH transmission insulator and retainer bolts.
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Remove the RH transmission insulator and retainer bolts.
 Courtesy of FORD MOTOR COMPANY
|
- 9.
Remove the transmission insulator and retainer.
 Courtesy of FORD MOTOR COMPANY
|
