Transmission Insulator and Retainer: Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Rear Wheel Drive (RWD) vehicles
- 1.
Install the transmission insulator and retainer.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
- 1.

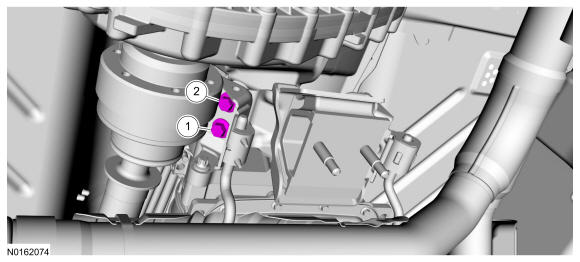

Loosely install the bolts in the sequence shown.
- 2.
Tighten the bolts in the sequence shown to 90 Nm (66 lb-ft).
Courtesy of FORD MOTOR COMPANY
- 3.

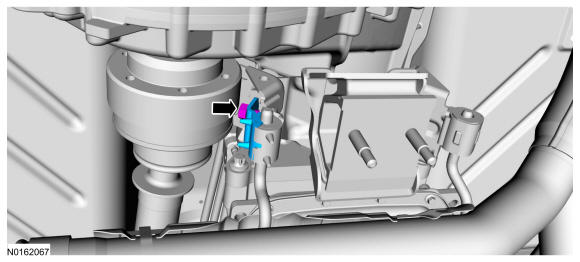

Install the LH isolator cap and the bolt.
- Tighten to 55 Nm (41 lb-ft).
 Courtesy of FORD MOTOR COMPANY
|
Four-Wheel Drive (4WD) vehicles
- 4.
Install the transmission insulator and retainer.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Loosely install the LH transmission insulator and retainer bolts in the sequence shown.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Loosely install the RH transmission insulator and retainer bolts in the sequence shown.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Tighten the bolts in the sequence shown.
- Tighten to 90 Nm (66 lb-ft).
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Install the LH isolator cap and the bolt.
- Tighten to 55 Nm (41 lb-ft).
 Courtesy of FORD MOTOR COMPANY
|
All vehicles
- 9.
Install the transmission support crossmember. Refer to
Full Frame and Body Mounting
.
