Shift Solenoid e (SSE)
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
SSE is an ON/OFF solenoid. When SSE is in the OFF position, SSD controls the regulator and latch valves to apply the low/reverse clutch. When SSE is in the ON position, SSD controls the regulator and latch valves to apply the overdrive (456) clutch. Refer to Hydraulic Circuits .
SSE is supplied hydraulic pressure from the SREG circuit. When SSE is OFF, the solenoid supply is blocked and the outlet port (SS1 circuit) is connected to the exhaust port. When SSE is ON, the exhaust port is blocked and the solenoid supply is connected to the outlet port (SS1 circuit).

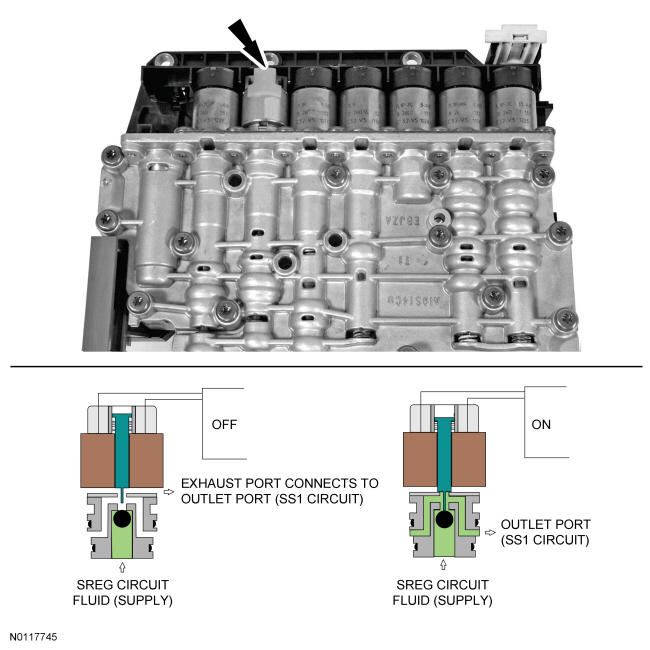

Shift Solenoid e (SSE) ON/OFF Solenoid
