Planetary Gearset
This transmission has 2 planetary gearsets (front and rear) to provide operation in reverse and 6 forward speeds.
The front planetary gearset is a single planetary gearset and has the following components:
- Front planetary No. 1 sun gear
- Front planetary carrier
- Front planetary ring gear (part of the input shaft assembly)
The input shaft rotates the front ring gear as a driving member. The front sun gear is connected to the fluid pump and is held stationary. The front ring gear rotates the front planetary carrier assembly with a reduction ratio of 1.52:1.
The front planetary carrier assembly is the only output member of the front planetary gearset in reverse, 1st, 2nd and 3rd gear. The front planetary gearset provides a 1.52:1 gear ratio to the rear planetary gearset.
In 4th and 5th gear, both the front ring gear and front planetary carrier assembly are output members of the front planetary gearset. The front planetary gearset provides both a 1:1 and 1.52:1 gear ratio to different members of the rear planetary gearset.
In 6th gear, the front ring gear is the only output member of the front planetary gearset. The front planetary gearset provides a 1:1 gear ratio to the rear planetary gearset.
The rear planetary gearset is a ravigenaux planetary gearset and has the following components:
- Rear planetary No. 2 sun gear
- Rear planetary No. 3 sun gear
- Rear planetary carrier assembly (2 sets of pinion gears)
- Rear planetary ring gear assembly
Power flow through the rear planetary gearset is as follows:
- In reverse, rear sun gear No. 2 is driven, the rear planetary carrier is held and the ring gear is the output (2.24:1 with reverse direction)
- In 1st gear, sun gear No. 3 is driven, the rear planetary carrier is held and the ring gear is the output (2.74:1)
- In 2nd gear, sun gear No. 3 is driven, sun gear No. 2 is held and the ring gear is the output (1.54:1)
- In 3rd gear, sun gear No. 3 and sun gear No. 2 are driven and the ring gear is the output (1:1)
- In 4th gear, sun gear No. 3 and the rear planetary carrier are driven and the ring gear is the output (1.14:1)
- In 5th gear, sun gear No. 2 and the rear planetary carrier are driven and the ring gear is the output (0.87:1)
- In 6th gear, the rear planetary carrier is driven, sun gear No. 2 is held and the ring gear is the output (0.69:1)

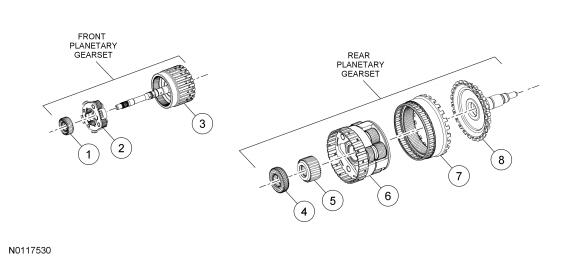

Planetary Gearset Exploded View
| Item | Description |
|---|---|
| 1 | Front planetary No. 1 sun gear |
| 2 | Front planetary carrier |
| 3 | Front planetary ring gear (part of input shaft assembly) |
| 4 | Rear planetary No. 2 sun gear |
| 5 | Rear planetary No. 3 sun gear |
| 6 | Rear planetary carrier |
| 7 | Rear planetary ring gear |
| 8 | Output shaft |
