Overdrive Clutch (E)
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
The overdrive clutch (E) connects the input shaft with the rear planetary carrier. The overdrive clutch (E) is applied in 4th, 5th and 6th gears.
Regulated hydraulic pressure from the regulator valve in the valve body pushes the overdrive clutch (E) piston against the overdrive clutch (E) pack to apply the clutch.

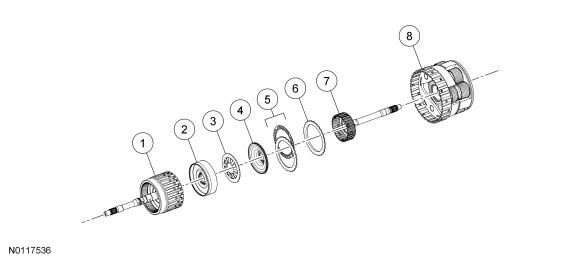

Overdrive Clutch (E) Exploded View
| Item | Description |
|---|---|
| 1 | Input shaft assembly |
| 2 | Overdrive clutch piston |
| 3 | Overdrive clutch piston return spring |
| 4 | Overdrive clutch balance piston |
| 5 | Overdrive clutch friction and steel plates |
| 6 | Overdrive clutch pressure plate |
| 7 | Intermediate shaft |
| 8 | Rear planetary carrier assembly |
