External Sealing
The pump assembly has a lip-type seal for the torque converter impeller hub. The pump assembly uses a large O-ring to seal the transmission case. The pump bolts also seal the pump to the transmission case.
The manual control lever shaft has a lip seal for its bore in the transmission case.
The transmission fluid pan uses a reusable gasket.
The output shaft flange has a lip-type seal that seals the flange to the transmission case.
The transmission case plug provides access to the park pawl shaft. The plug has a seal that is serviced as an assembly with the plug.
The transmission bulkhead connector sleeve has seals for the transmission case bore.
The plug for the fluid level indicator uses an O-ring seal.

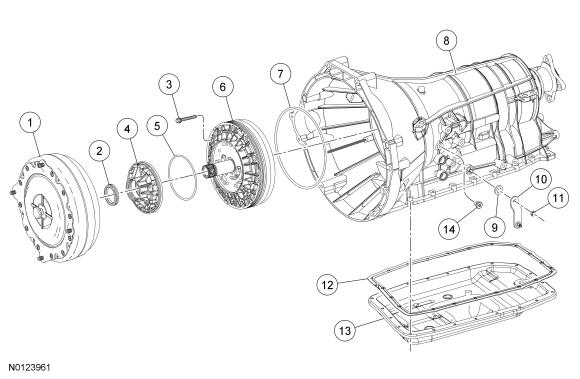

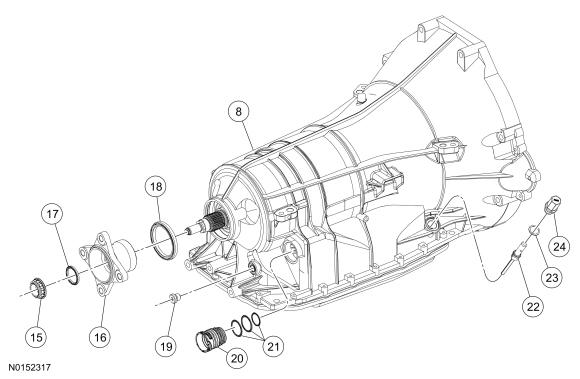

External Sealing (Gaskets, O-rings and Seals)
| Item | Description |
|---|---|
| 1 | Torque converter |
| 2 | Front pump oil seal |
| 3 | Front pump-to-case bolt (13 required) |
| 4 | Front pump assembly |
| 5 | Pump assembly inner oil seal |
| 6 | Front pump assembly |
| 7 | Front pump outer oil seal |
| 8 | Transmission case |
| 9 | Manual control lever shaft seal |
| 10 | Manual control lever (Manual control lever installation position is vehicle/model dependent.) |
| 11 | Manual control lever nut |
| 12 | Transmission fluid pan gasket |
| 13 | Transmission fluid pan |
| 14 | Line pressure tap plug |
| 15 | Output shaft flange retaining nut RWD |
| 16 | Output shaft flange RWD |
| 17 | Output shaft flange seal RWD |
| 18 | Output shaft seal (model dependent) |
| 19 | Transmission case plug (park pawl shaft access) |
| 20 | Transmission bulkhead connector sleeve |
| 21 | Transmission bulkhead connector sleeve seals |
| 22 | Transmission fluid level indicator |
| 23 | Transmission fluid level indicator plug seal (part of transmission fluid level indicator) |
| 24 | Transmission fluid level indicator plug (part of transmission fluid level indicator) |
