Output Shaft
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
The output shaft provides torque to the driveshaft and rear axle assembly. It is splined to the ring gear of the rear/ravigneaux planetary gearset.

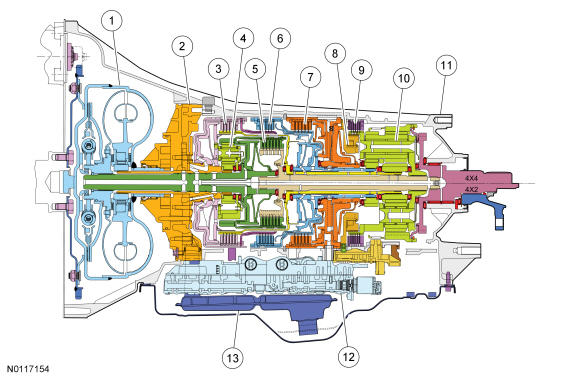

Major Components Cutaway View
| Item | Description |
|---|---|
| 1 | Torque converter |
| 2 | Front pump assembly |
| 3 | Forward clutch (A) |
| 4 | Front planetary gearset |
| 5 | Overdrive clutch (E) |
| 6 | Direct clutch (B) |
| 7 | Intermediate clutch (C) |
| 8 | One-Way Clutch (OWC) |
| 9 | Low/reverse clutch (D) |
| 10 | Rear planetary gearset |
| 11 | Transmission case |
| 12 | Main control assembly |
| 13 | Transmission fluid filter |
