Selector Lever Cable - Floor Shift: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- 1.
Prior to replacing the selector lever cable for a no start or high shift effort concern, verify the selector lever cable to bracket clip is fully seated at the transmission and selector lever assembly. Unseated cables can cause selector lever cable binding and prevent the manual shaft from completely returning to the P (Park) position.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
With the vehicle in NEUTRAL, position it on a hoist. Refer to
Jacking and Lifting
.
- 3.
Position the selector lever in DRIVE.
Expedition
- 4.
Remove the selector lever trim ring and the console tray insert.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Remove the screw, raise the console upper trim panel and disconnect the ambient light electrical connector and remove the trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Remove the bolts and position the selector lever aside.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Unlatch and position aside the selector lever bezel.
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Disconnect the selector lever cable from the selector lever arm and the selector lever housing.
 Courtesy of FORD MOTOR COMPANY
|
Navigator
- 9.
Remove the selector lever trim ring.
 Courtesy of FORD MOTOR COMPANY
|
- 10.
Raise the console upper trim panel and disconnect the ambient light electrical connector and remove the trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 11.
Remove the bolts and position the selector lever aside.
Courtesy of FORD MOTOR COMPANY
|
- 12.
Unlatch and position aside the selector lever bezel.
Courtesy of FORD MOTOR COMPANY
|
- 13.
Disconnect the selector lever cable from the selector lever arm.
 Courtesy of FORD MOTOR COMPANY
|
- 14.
Disconnect the selector lever cable from the selector lever housing.
 Courtesy of FORD MOTOR COMPANY
|
All vehicles
- 15.

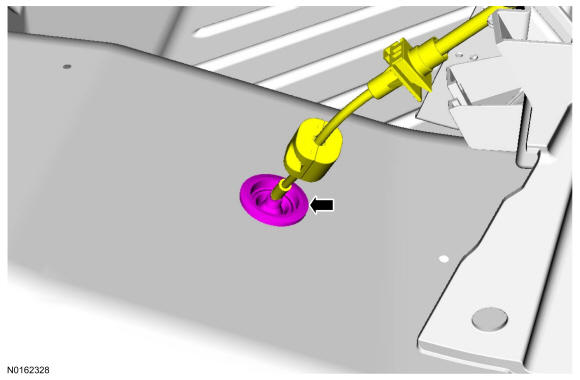

Push the rubber grommet and selector lever cable through the floor pan.
 Courtesy of FORD MOTOR COMPANY
|
- 16.
Remove the retainers and the transmission shield.
 Courtesy of FORD MOTOR COMPANY
|
- 17.
Detach the selector lever cable from the routing clip.
 Courtesy of FORD MOTOR COMPANY
|
- 18.
Clean the cable adjustment lock of any debris.
 Courtesy of FORD MOTOR COMPANY
|
- 19.
NOTE:
To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
Rotate the cable adjustment lock upward and remove the selector lever cable from the manual control lever.
 Courtesy of FORD MOTOR COMPANY
|
- 20.
Disconnect the selector lever cable from the selector lever cable bracket and remove the selector lever cable.
 Courtesy of FORD MOTOR COMPANY
|
