Selector Lever Bezel: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

Remove the selector lever knob. Refer to Selector Lever Knob .

2.

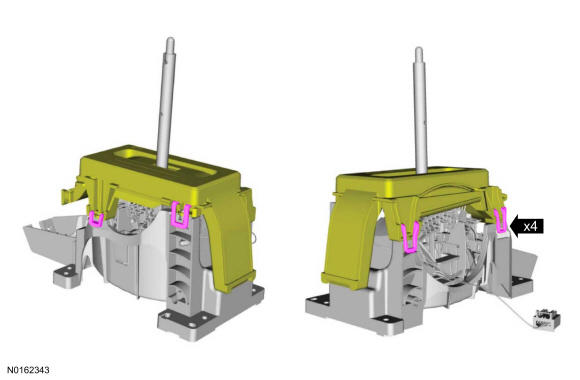

Lift the tabs on the selector lever bezel and lift the bezel for access to the electrical harness.

Courtesy of FORD MOTOR COMPANY

Expedition

3.

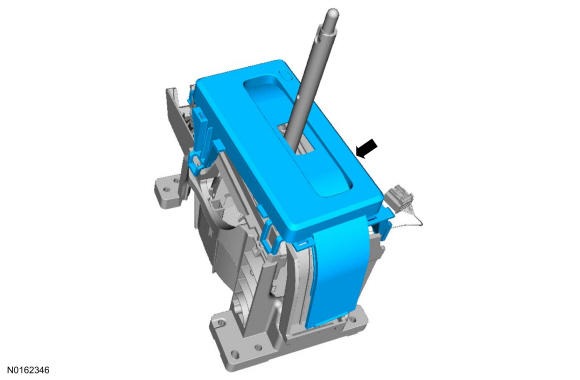

Disconnect the lamp connectors from the bezel.

Courtesy of FORD MOTOR COMPANY

Navigator

4.

Disconnect and detach the LED electrical connector.

Courtesy of FORD MOTOR COMPANY

All vehicles

5.

Remove the selector lever bezel.

Courtesy of FORD MOTOR COMPANY
