Selector Lever - Floor Shift: Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- 1.

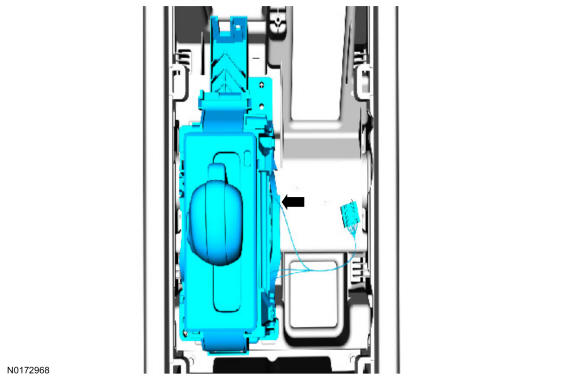

Position the selector lever into the console.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Connect the selector lever electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
Expedition
- 3.

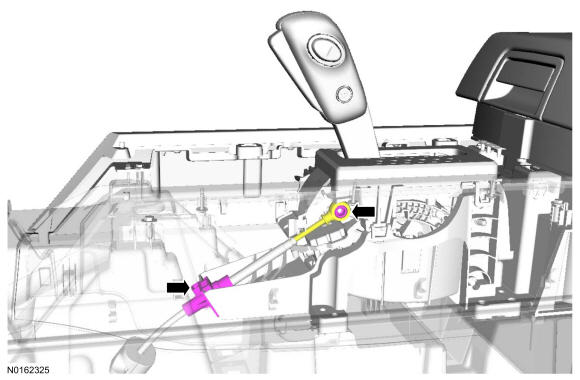

Connect the selector lever cable to the selector lever arm and the selector lever housing.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

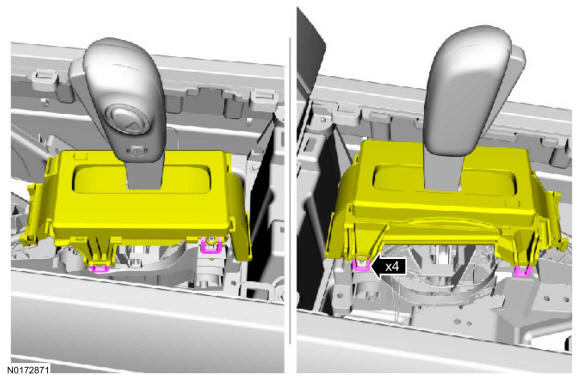

Position and latch the selector lever bezel.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

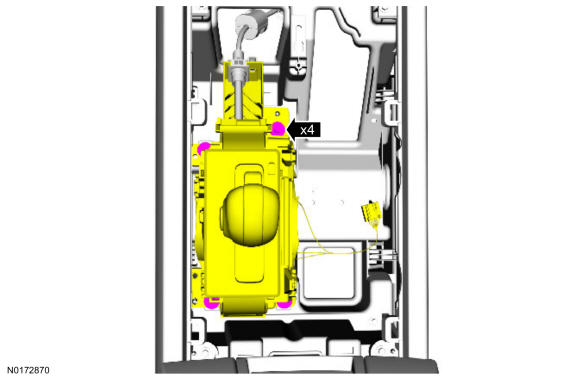

Position the selector lever and install the bolts.
- Tighten to 8 Nm (71 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
- 6.

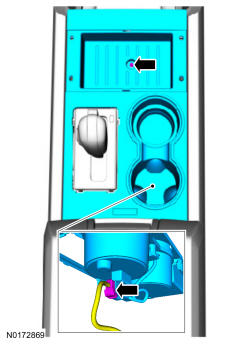

Connect the ambient light electrical connector and install the console upper trim and the screw.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Install the selector lever trim ring and console tray insert.
 Courtesy of FORD MOTOR COMPANY
|
Navigator
- 8.
Connect the selector lever cable to the selector lever housing.
 Courtesy of FORD MOTOR COMPANY
|
- 9.

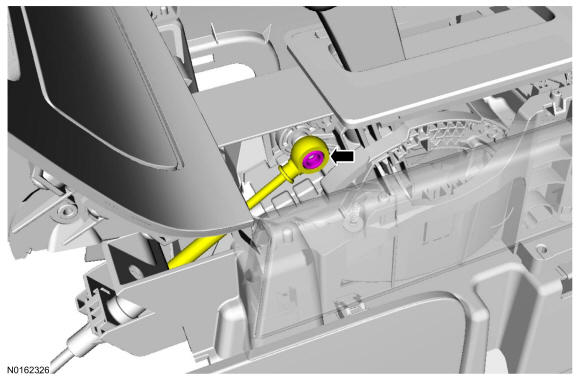

Connect the selector lever cable to the selector lever arm.
 Courtesy of FORD MOTOR COMPANY
|
- 10.
Position and latch the selector lever bezel.
Courtesy of FORD MOTOR COMPANY
|
- 11.
Position the selector lever and install the bolts.
- Tighten to 8 Nm (71 lb-in).
Courtesy of FORD MOTOR COMPANY
|
- 12.

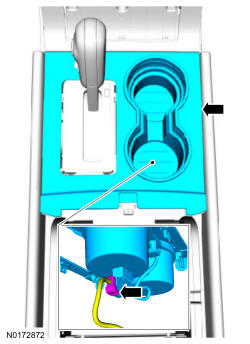

Connect the ambient light electrical connector and install the floor console upper panel.
 Courtesy of FORD MOTOR COMPANY
|
- 13.

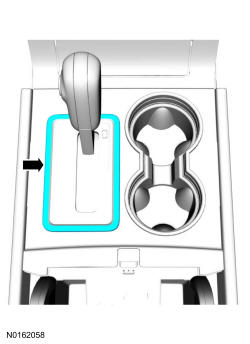

Install the selector lever trim ring.
 Courtesy of FORD MOTOR COMPANY
|
All vehicles
- 14.
Adjust the selector lever cable. Refer to Selector Lever Cable Adjustment .
