Brake Shift Interlock Actuator - Column Shift: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the selector lever mechanism. Refer to Selector Lever Mechanism .

2.

Remove the BSIA screw.

Courtesy of FORD MOTOR COMPANY

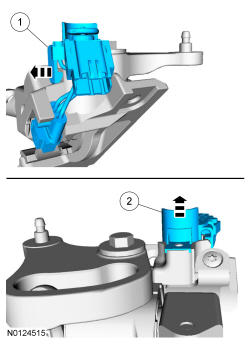

3.

Remove the BSIA.
1. 1.

  Gently pry out the clip.
1. 2.

  While prying out the clip, simultaneously remove the BSIA from the selector lever mechanism housing.

Courtesy of FORD MOTOR COMPANY

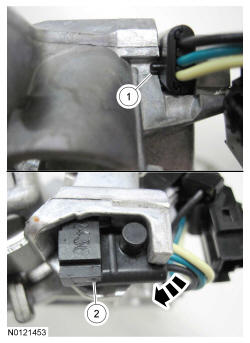

4.

Remove the park position switch.
1. 1.

  Press the spring loaded pin.
1. 2.

  While pressing in on the spring loaded pin. rotate the park position switch clockwise and remove it from the selector lever mechanism.

Courtesy of FORD MOTOR COMPANY
