Turbocharger Boost Pressure (TCBP) / Charge Air Cooler Temperature (CACT) Sensor: Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the O-ring seal with clean engine oil.

1.

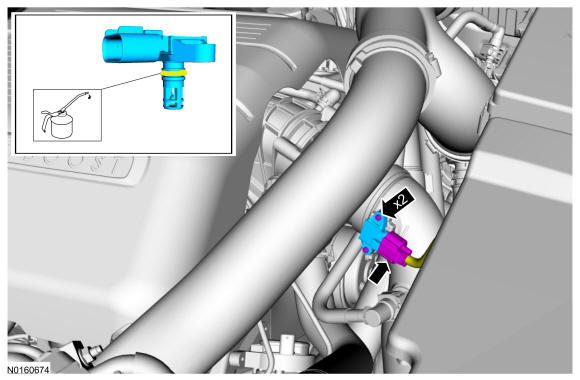

- Install the TCBP /CACT sensor and retainers, tighten to 3 Nm (27 lb-in).
- Connect the TCBP /CACT electrical connector.

Courtesy of FORD MOTOR COMPANY
