Manifold Absolute Pressure (MAP) / Intake Air Temperature 2 (IAT2) Sensor: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the oil filler cap and remove the engine appearance cover. Install the oil filler cap.
 Courtesy of FORD MOTOR COMPANY
|

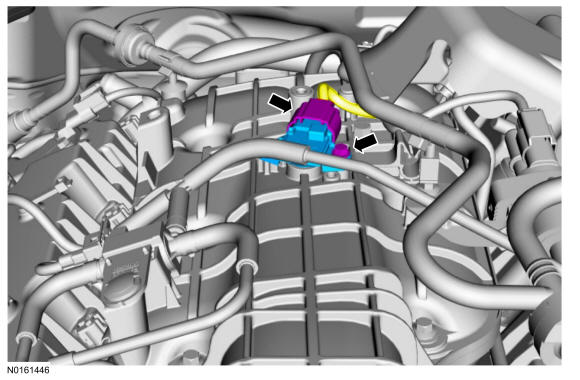

- 2.
- Disconnect the Manifold Absolute Pressure and Temperature (MAPT) electrical connector.
- Remove the bolt and the MAPT sensor.
 Courtesy of FORD MOTOR COMPANY
|
