Fuel Rail Pressure (FRP) Sensor: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Release the fuel system pressure. Refer to Fuel System General Information .

2.

Remove the coolant crossover manifold assembly. Refer to Engine Cooling .

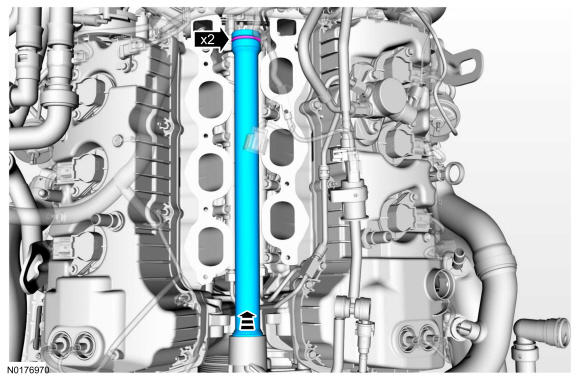

3.

Remove the coolant inlet pipe.
- Remove and discard the O-ring seals.

GFD135871

Courtesy of FORD MOTOR COMPANY

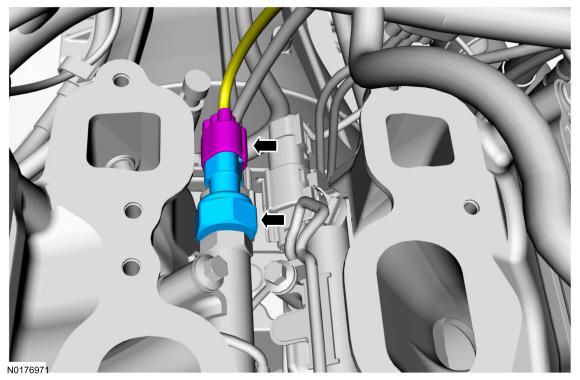

4.
- Disconnect the Fuel Rail Pressure (FRP) sensor electrical connector.
- Remove the FRP sensor.

GFD135872

Courtesy of FORD MOTOR COMPANY
