Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

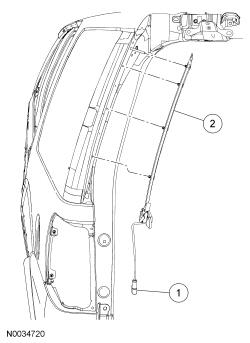

| Item |
Part Number |
Description |
| 1 |
- |
Pinch strip electrical connector |
| 2 |
42430B |
Pinch strip |
NOTE:
Left side shown, right side similar.
- 1.
Remove the brake light.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Disconnect the pinch strip electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Remove the pinch strip.
- 1.
Remove the pin-type retainers.
- 2.
Remove the grommet and route the harness out of the vehicle.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
To install, reverse the removal procedure.
