Removal And Installation: Liftgate

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft ® Threadlock 262TA-26	WSK-M2G351-A6

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1.

Remove the liftgate trim panel, refer to Interior Trim and Ornamentation .

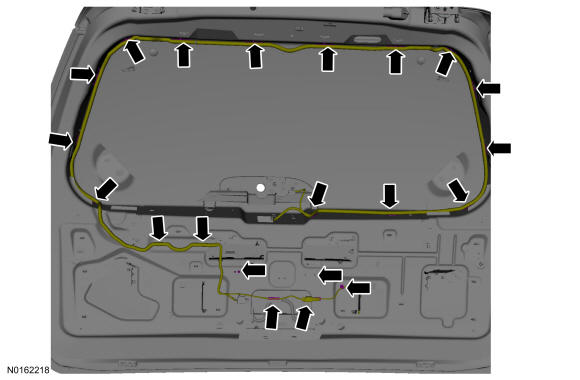

2.

Disconnect the liftgate electrical connectors and harness routing clips.

GFD137142

Courtesy of FORD MOTOR COMPANY

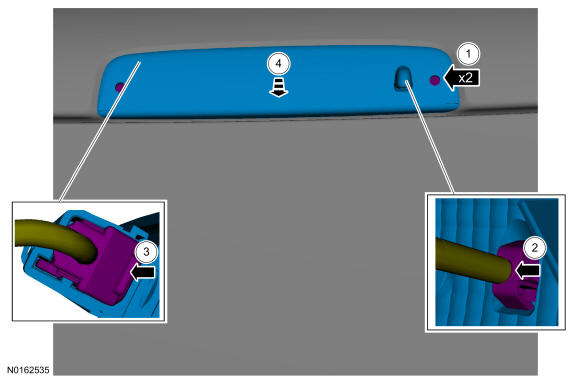

3.
1. 1.

  Remove the screws.
1. 2.

  Detach the washer hose from the washer jet.
1. 3.

  Disconnect the electrical connector.
1. 4.

  Remove the lamp assembly.

GFD137143

Courtesy of FORD MOTOR COMPANY

4.

Remove the rear washer tube grommet from the liftgate.

GFD137144

Courtesy of FORD MOTOR COMPANY

Vehicles with power liftgate

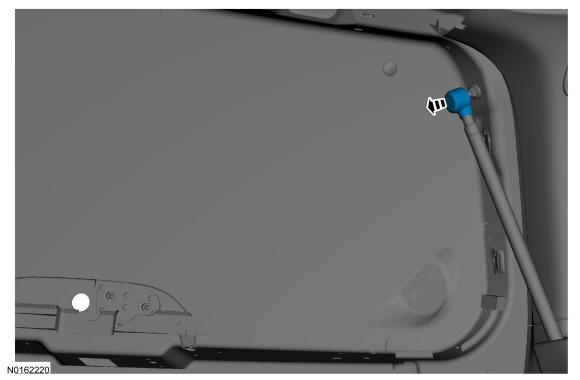

5.

On both sides, remove the power liftgate rod cover.

GFD137145

Courtesy of FORD MOTOR COMPANY

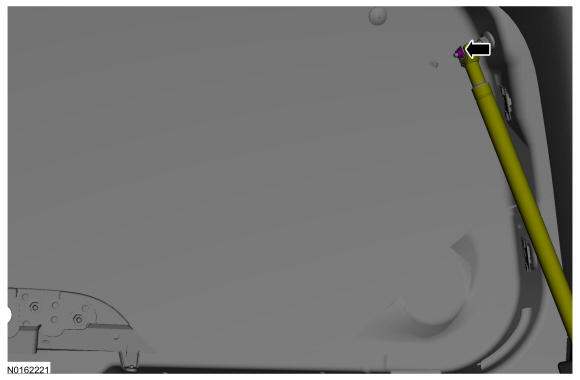

6.

On both sides, remove the nut and the power liftgate rod from the liftgate.
- To install, apply threadlock to the threads of fastener and tighten to 9 Nm (80 lb-in).

GFD137146

Courtesy of FORD MOTOR COMPANY

All vehicles

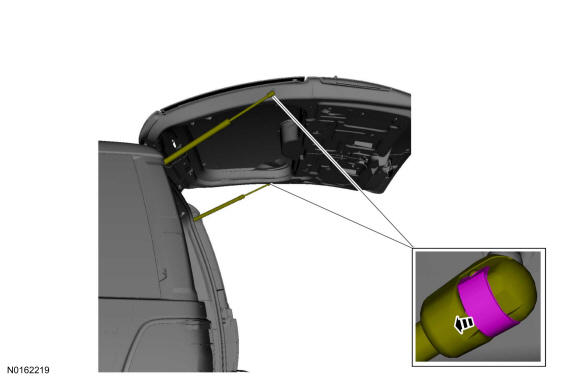

7.

On both sides, disconnect the assist cylinder at the side of the liftgate.

GFD137147

Courtesy of FORD MOTOR COMPANY

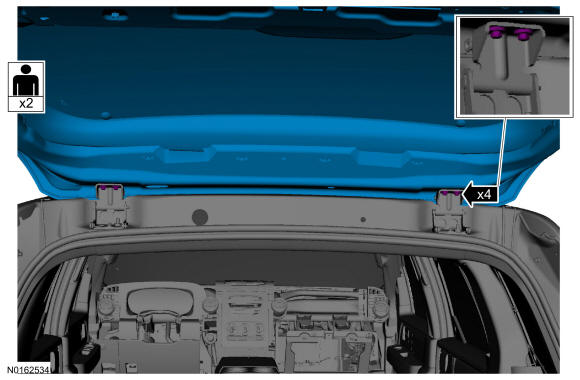

8.

NOTE: An assistant is necessary for the removal of the liftgate.

Remove the bolts and the liftgate.
- To install, tighten to 28 Nm (21 lb-ft).

GFD137148

Courtesy of FORD MOTOR COMPANY

9.

To install, reverse the removal procedure.

10.

Check the liftgate to body alignment. Align the liftgate as necessary. Refer to Door Alignment - Front .

11.

If equipped with power liftgate, initialize the power liftgate system. For additional information, refer to Power Liftgate Initialization .
