Door Check Arm

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

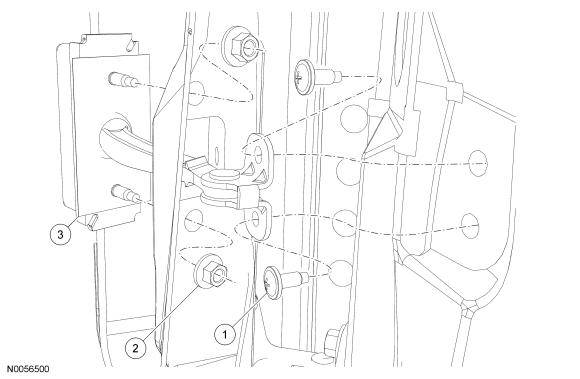

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W702788	Door check arm-to-door bolt
2	-	Door check arm nut
3	23552	Door check arm

Left and right sides

1.

Remove the lower cowl trim panel.
- Remove the door scuff plate.

Left side

2.

Remove the parking brake control assembly and position aside. For additional information, refer to Parking Brake and Actuation .

Left and right sides

3.

Remove the lower cowl panel weather shield.

4.

Remove the 2 door check arm-to-door bolts.

5.

NOTE: Left side shown, right side similar.

Remove the 2 door check arm nuts.

Courtesy of FORD MOTOR COMPANY

6.

Remove the door check arm from the opening in the lower cowl panel.

7.

To install, reverse the removal procedure.
